Audi A5 F5 B9 Coupé Sportback rear view camera retrofit package

Significantly enhance your Audi A5 F5 B9 with the original rear view camera.

Here we supply you with the complete package for retrofitting the original rear view camera - suitable for your AUDI A5 F5 B9 Coupé or Sportback.

+ Optical display of the live image on the MMI screen with display of the active and moving auxiliary lines when steering

+ Activation of the live image when engaging reverse gear or by pressing the parking aid button (if installed)

After briefly plugging it into the very easily accessible OBD diagnostic interface in the driver's footwell, the KECODI coding interface supplied here uses the innovative KECODI that is already preset for you to fully automatically activate the rear view camera - NO further coding work with a tester and NO activation with an SVM activation code from an AUDI partner is necessary.

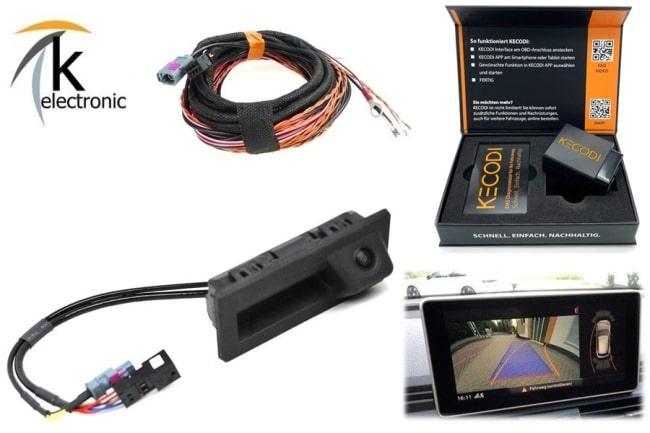

Scope of delivery:

• - 1x Original AUDI A5 F5 B9 rear view camera / control unit
• - 1x pre-assembled cable set

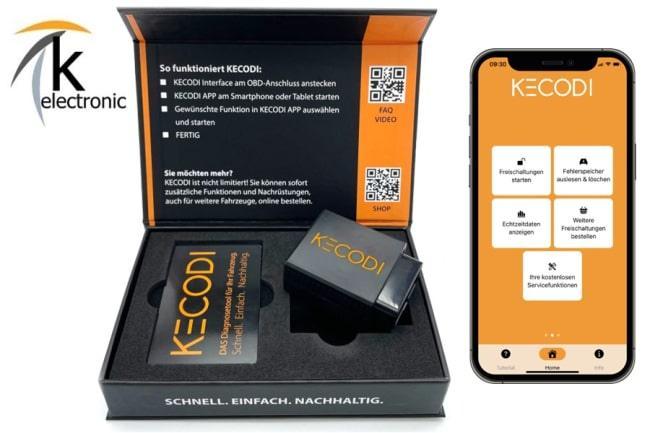

• - 1x KECODI interface
• - 1x KECODI interface storage case
• - 1x installation instructions (German)

Installation time: approx. 3 hours

Please note the exclusion for vehicles from model year 2023 onwards with installed PR number NI8 (NI8 = Without UNECE CS (R155) and SU (R156) with SFD2-SG) or installed PR number NI7 (NI7 = With UNECE CS (R155) without SU (R156)).

Unfortunately, these models cannot be retrofitted or unlocked.

Please feel free to contact us to check before ordering.

Vehicles of the model year 2023 with installed PR number NI0 (NI0 = Without UNECE CS&SU) or vehicles of previous model years (e.g. 2022, 2021, etc., where this PR number does not yet exist) can still be retrofitted.

Product attributes:

The retrofitting of the original rear view camera / Rear Assist is possible on all AUDI A5 / S5 / RS5 F5 B9 Coupé and Sportback models of all years (pre-facelift / facelift) with any installed MMI multimedia system such as:

MMI Navigation plus with touch input (= PR number: 7UG)

MMI Navigation Standard (= PR number: 7UF)

MMI with navigation preparation (= PR number: 7UH / 7UZ)

MMI radio standard (PR number: I8E)

MMI Radio high (PR number: I8L, I8S)

Suitable for all AUDI A5 F5 models with all parking aid systems such as: rear parking aid (PR no.: 7X1), front + rear (PR no.: 7X2), parking steering assistant (PR no.: 7X5) and also suitable for your AUDI without parking aid (PR no.: 7X0).

For your AUDI A5 F5 Cabriolet you need the rear view camera retrofit package with article number: 16613

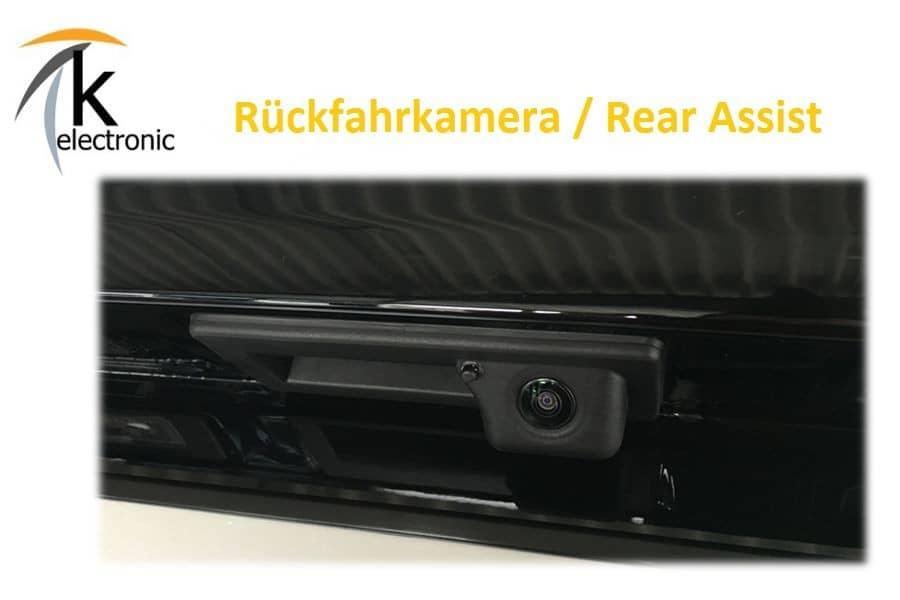

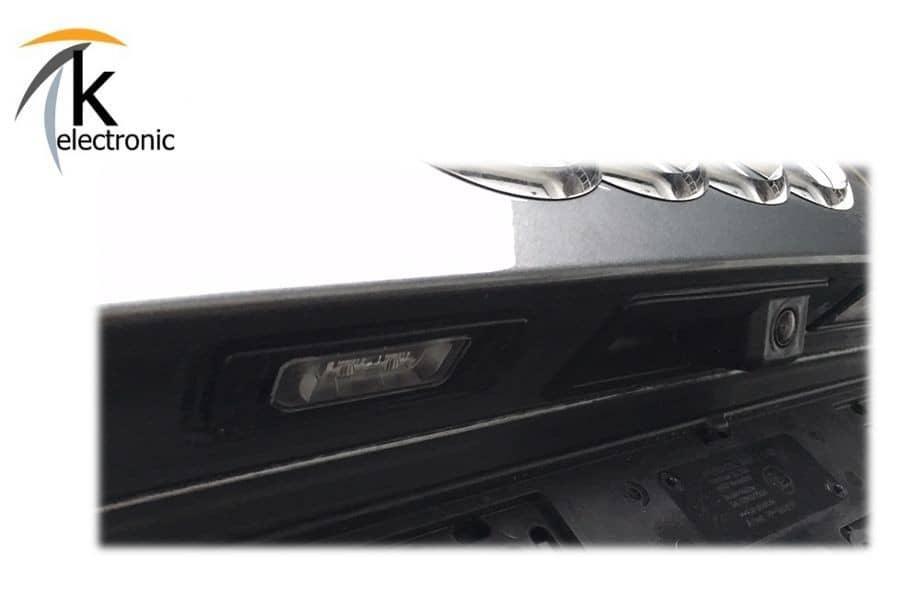

The existing push button on the tailgate will be replaced 1:1 with the original AUDI A5 F5 B9 push button with integrated camera.

When you engage reverse gear, the system immediately switches to the camera system (functions 100% as installed at the factory).

The display is dynamic - i.e. active - with auxiliary lines/auxiliary fields, thus 100% with ALL functions as installed at the factory.
