Speed Engineering Brake Cooling for BMW M3 G8X TRACK – Front Axle Complete Set

This is the track set for ambitious drivers who enjoy taking their vehicle to the racetrack.

Brake cooling for the front axle.

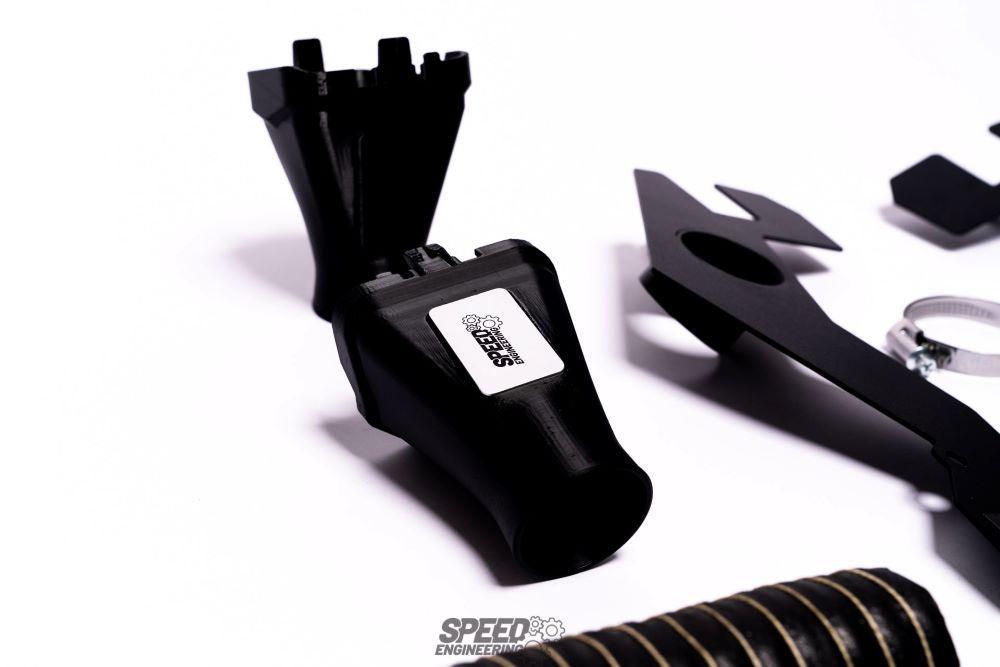

Air duct inlet:

To transport air to the outlet of the brake ventilation, a suitable inlet is essential. The G80/82 M3/M4 (as well as the Competition) already has inlet ducts in the front bumper from the factory, but these end in the middle of the wheel well. To prevent air from swirling randomly in the wheel well, we have developed an inlet duct that can be installed with minimal effort and connects the air around the wheel to the outlet via a hose. No mounting tools are required for installation. It is installed by replacing the original duct connector. The duct is based on the OEM duct and thus uses exactly the same connection points, making it 100% reversible without leaving any residue.

Air duct outlet:

For many vehicles, brake cooling is recommended even under moderate load, even off the racetrack. This not only improves braking performance but also drastically reduces the wear of the friction partners. Our anchor plate uses the channeling of the airflow to the center of the brake disc to utilize the turbine effect for cooling the disc from the inside. We specifically direct the air to the disc at a defined angle to avoid scatter losses and to use the available air volume as efficiently as possible. Thanks to its lightweight construction combined with powdered aluminum, the anchor plate is sufficiently strong, yet light and insensitive. In addition, the bearings closest to the brake disc are shielded from heat to increase their lifespan (if necessary).

Included in delivery:

1x Air guide duct inlet left

1x Air guide duct inlet right

1x Anchor plate left

1x Anchor plate right

2x Air hose (2 meters)

4x Hose clamps

Item is suitable for

• BMW M4 G82
• BMW M3 G80
• BMW M2 G87

Motorsport parts without road approval. We explicitly point out that none of our products offered for sale are original vehicle parts from vehicle manufacturers BMW AG, M GmbH, MINI, VAG, or any other vehicle manufacturer. The naming of vehicle brands and models is solely for product identification and their assignment to the appropriate vehicle type.

The different models vary slightly in wheel position, coupled with different chassis geometries and wheel and tire combinations, making it impossible for us to cover all variants. In the worst case, the wheel might slightly rub at full steering lock (which should only happen when parking), which cannot cause damage to the tire. In this case, we would ask you to refrain from using the last ¼ of the steering revolutions.
