Speed Engineering Front Axle Brake Cooling for BMW M2 Competition F87 Complete Set

Description

100% Made in Germany!

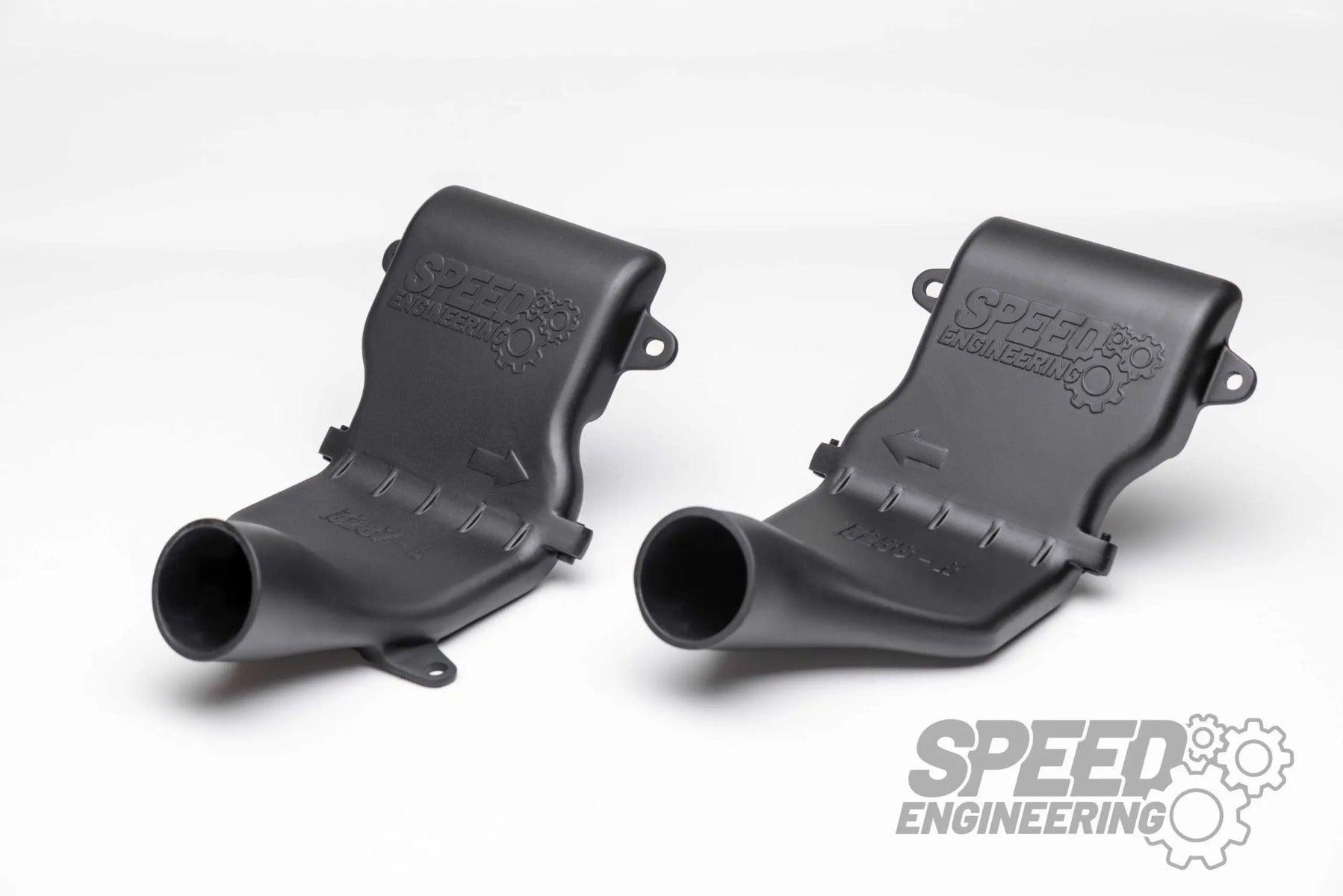

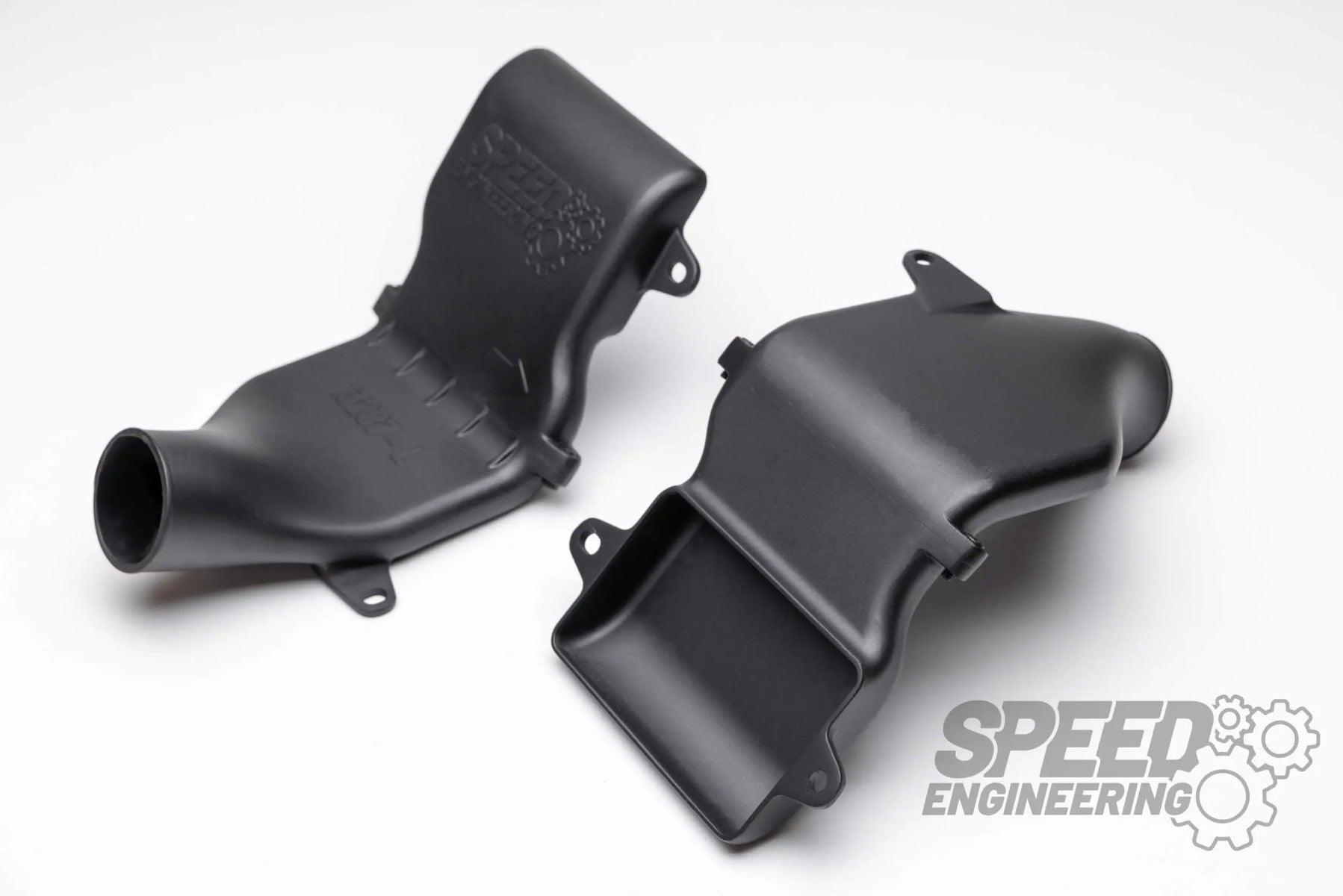

Air Duct Inlet

To transport air to the brake cooling outlet, a suitable inlet is indispensable. The M2 Competition already has inlet ducts in the front bumper from the factory, but these end in the middle of the wheel well. To prevent air from swirling randomly in the wheel well, we have developed an air duct extension that can be installed with minimal effort and guides the air around the wheel and connects to the outlet via a hose.

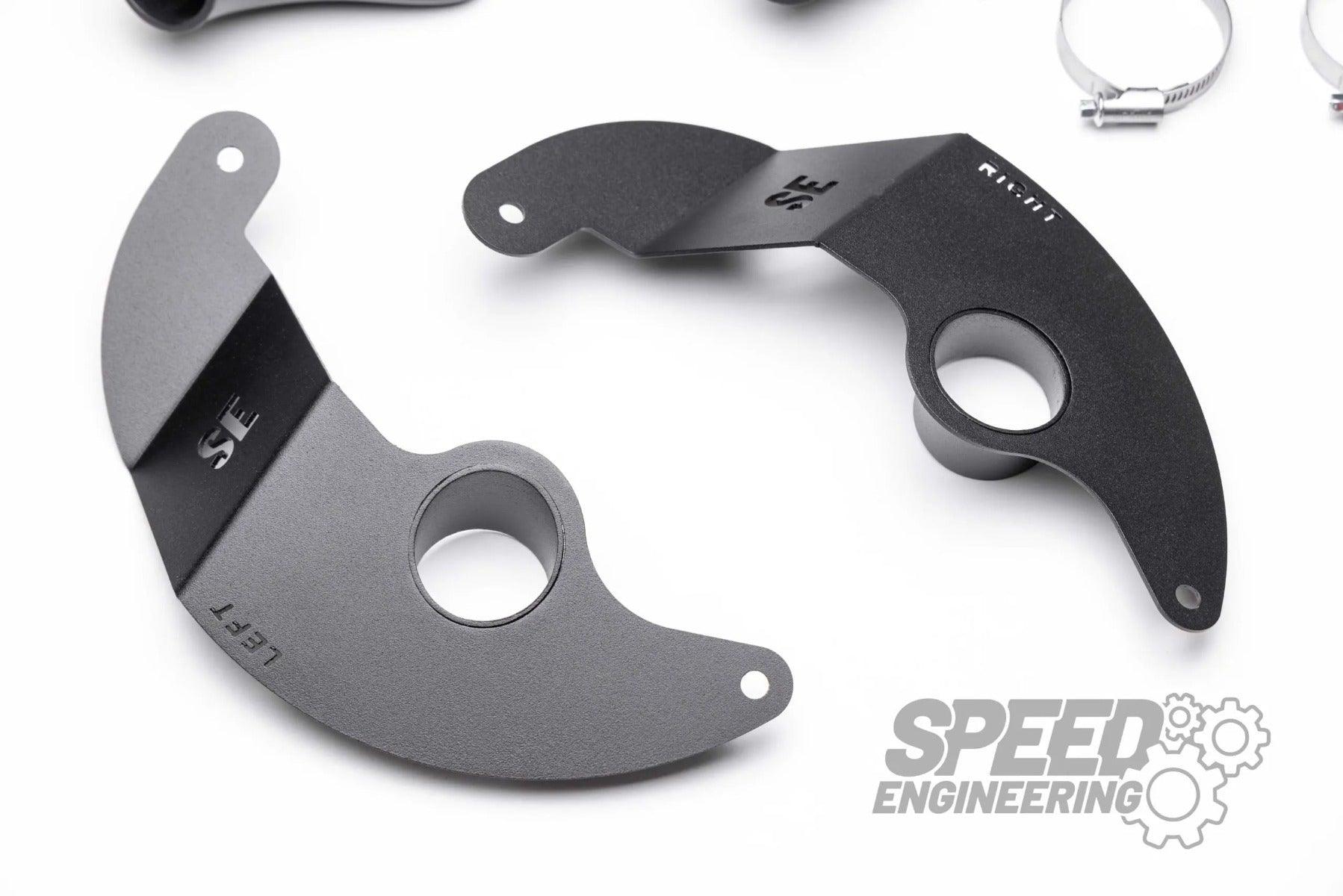

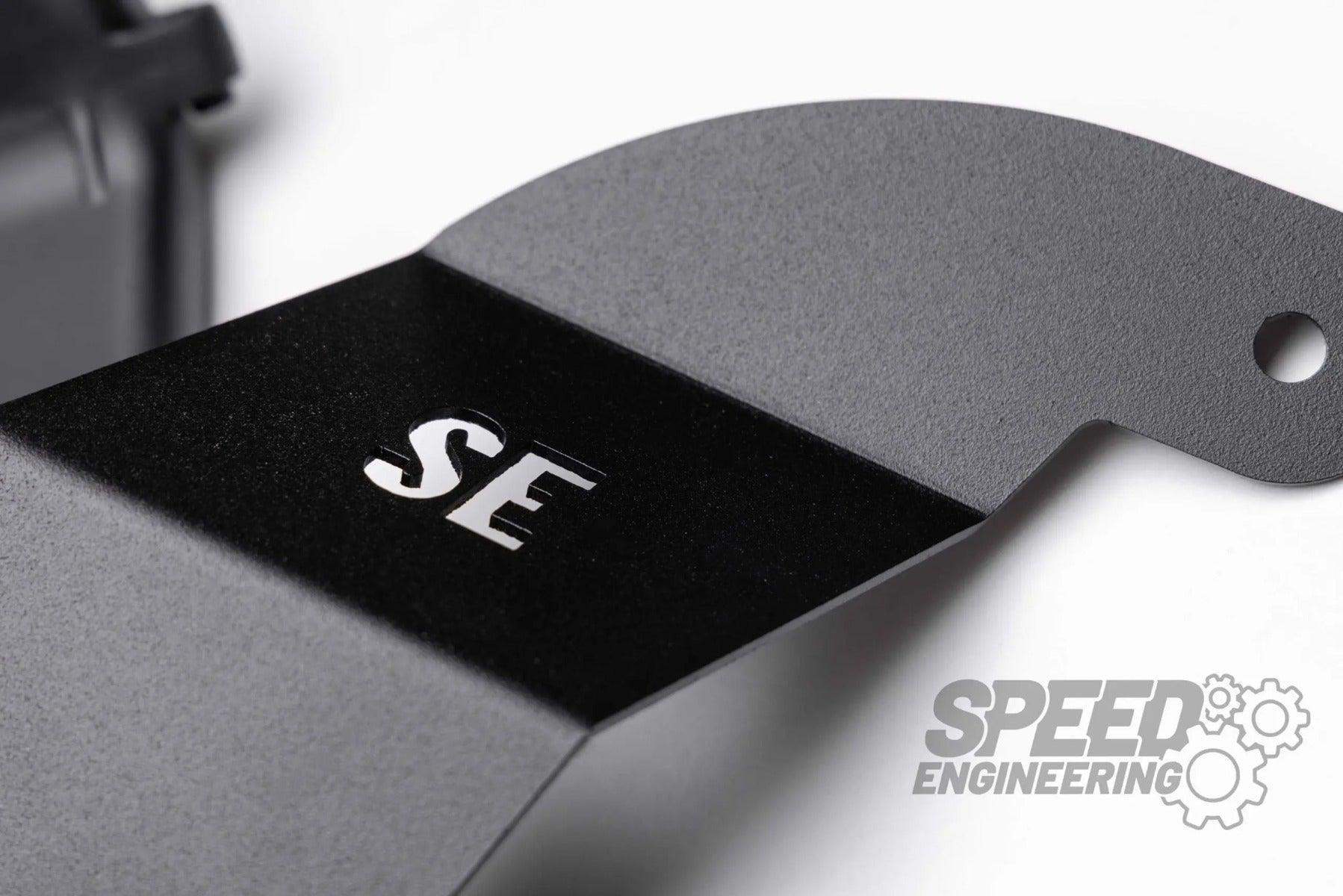

Air Duct Outlet

For many vehicles, brake cooling is recommended even under moderate loads, even off the racetrack. This not only improves brake performance but also drastically reduces wear on friction partners. Our backing plate uses the channeling of the airflow to the center of the brake disc to utilize the turbine effect for cooling the disc from the inside. We specifically direct the air to the disc at a defined angle to avoid scattering losses and to use the available air volume as efficiently as possible. Thanks to the lightweight construction in combination with powder-coated aluminum, the backing plate is sufficiently strong yet light and robust. In addition, the bearings closest to the brake disc are shielded from the heat to increase their lifespan (if necessary).

IMPORTANT: The different models vary slightly in wheel position, coupled with different chassis geometries and wheel and tire combinations, making it impossible for us to cover all variants. In the worst case, the wheel could rub slightly at full steering lock (which should only occur when parking), which cannot cause damage to the tire. In this case, we would ask you to refrain from the last ¼ of the steering revolutions.

The inlets can be supplied in grey, deviating from the illustration.

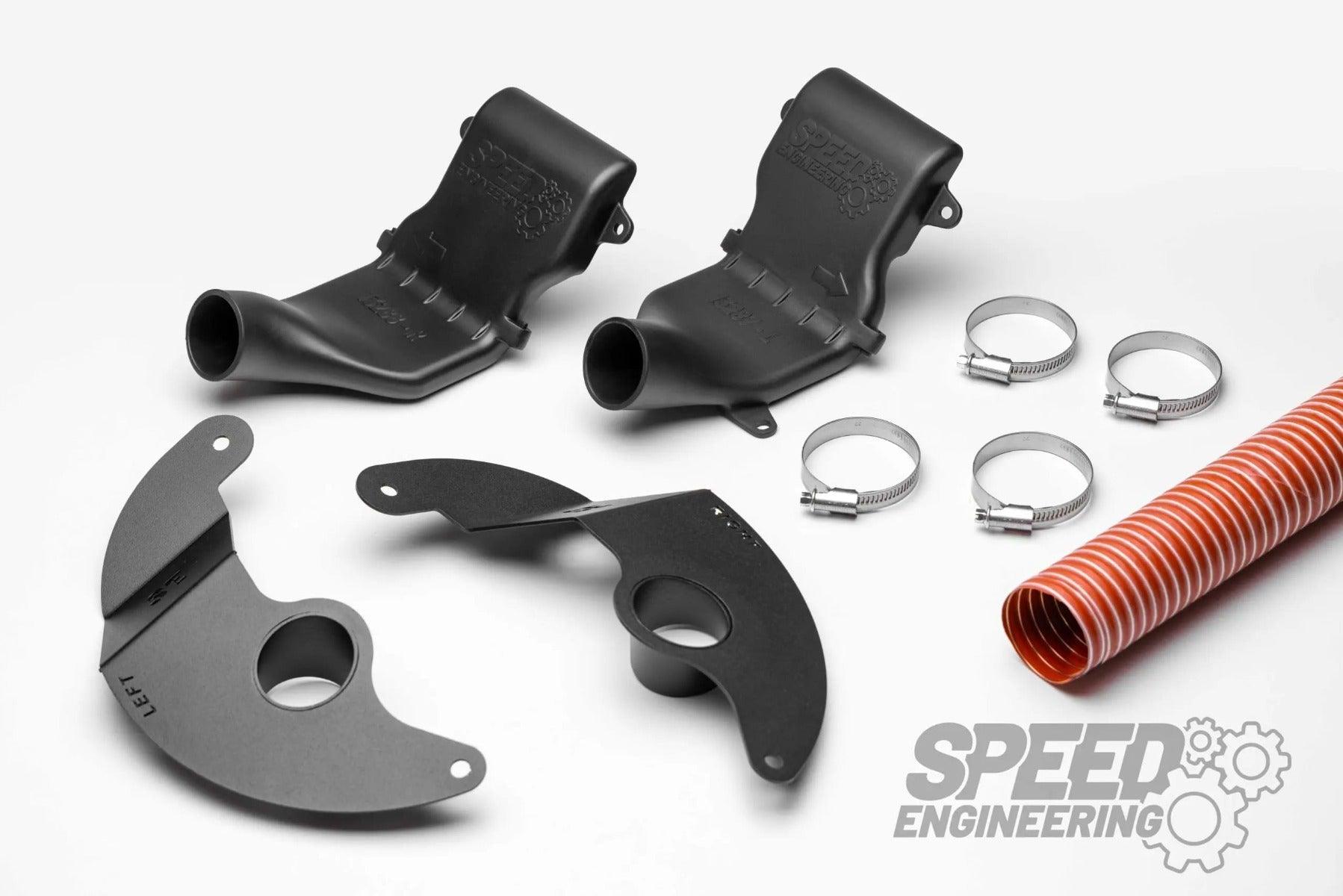

Scope of delivery

• 1x Air duct inlet left
• 1x Air duct inlet right
• 1x Air duct outlet left
• 1x Air duct outlet right
• 1x Air hose 1 meter
• 6x Mounting screw
• 6x Washer
• 4x Hose clamp

This item is suitable for

• BMW F87N M2C, M2 CS

Motorsport Parts Without Road Approval We explicitly point out that none of the products offered for sale are original vehicle parts from vehicle manufacturers BMW AG, M GmbH, MINI, VAG, or other vehicle manufacturers. Naming the vehicle brands and models is only for product identification and their assignment to the appropriate vehicle type.

The different models vary slightly in wheel position, coupled with different chassis geometries and wheel and tire combinations, making it impossible for us to cover all variants. In the worst case, the wheel could rub slightly at full steering lock (which should only occur when parking), which cannot cause damage to the tire. In this case, we would ask you to refrain from the last ¼ of the steering revolutions.
