Eventuri Carbon Turbo Pipe for Intake System for Mercedes Benz A35 AMG | CLA35 AMG and A250

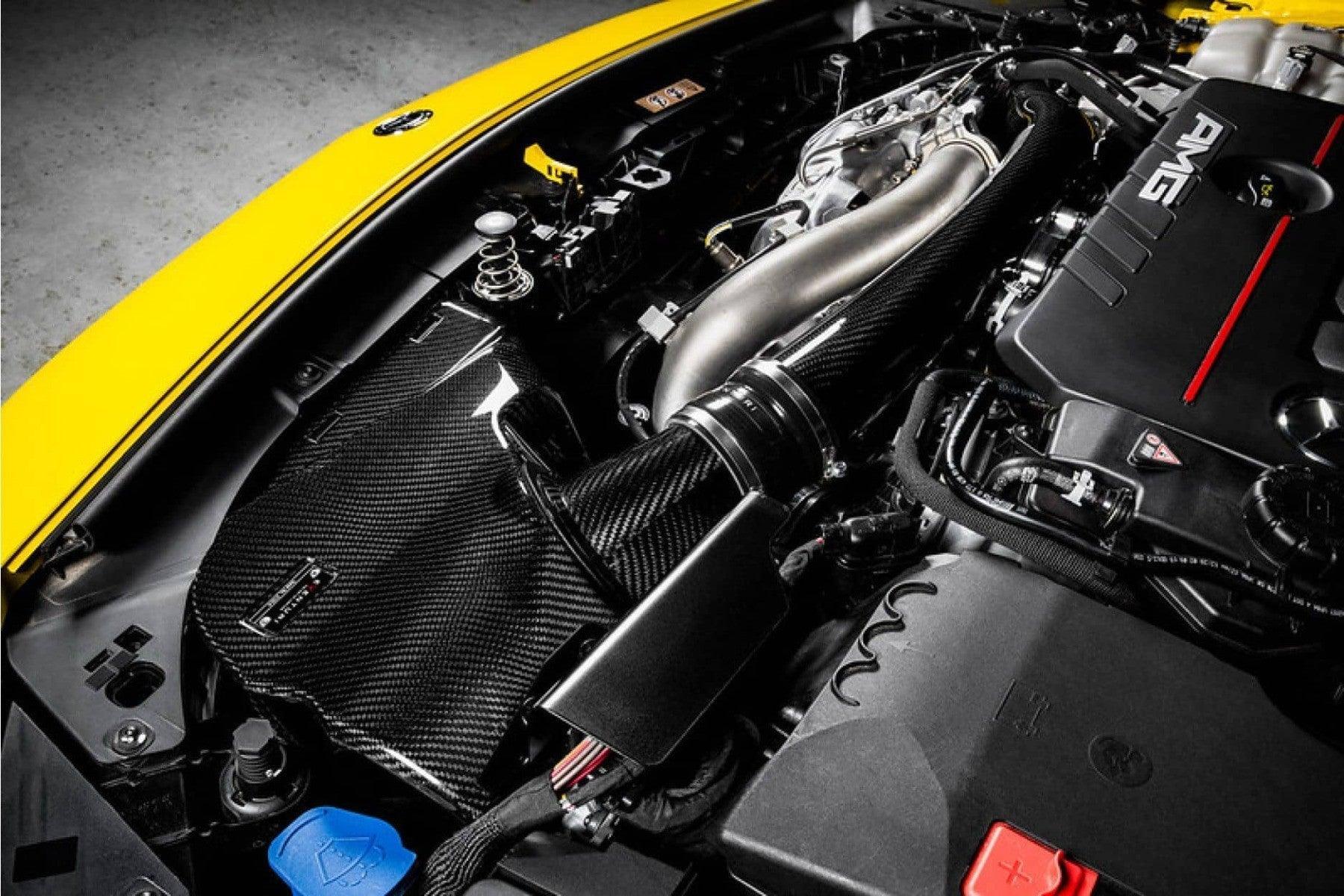

*Some photos show the Eventuri intake system - it's available here: To the Eventuri intake system for A35AMG

FITS ONLY THE EVENTURI INTAKE SYSTEM on: Mercedes A35 AMG, CLA35 AMG, A250, CLA250 | W177, V177, Z177

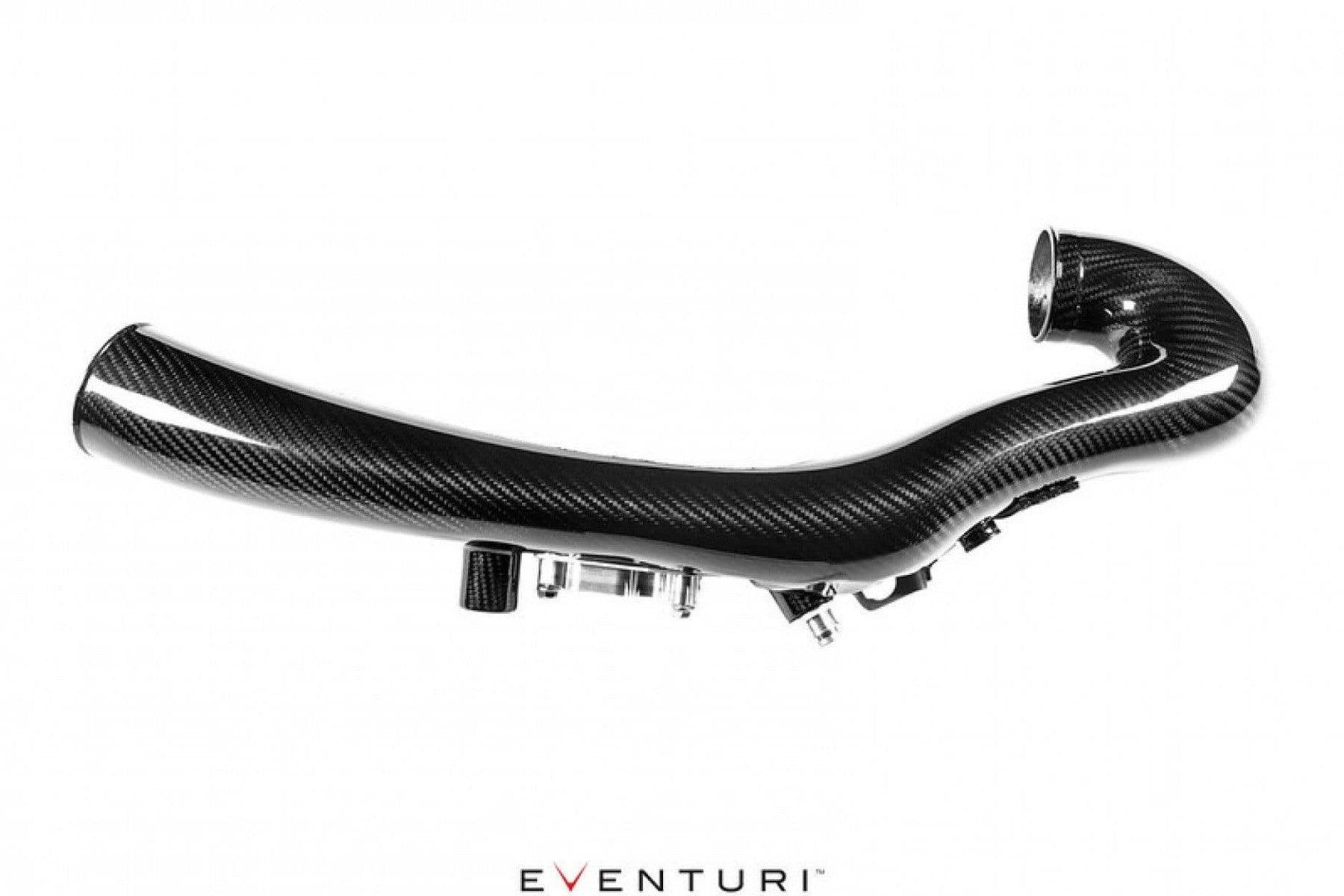

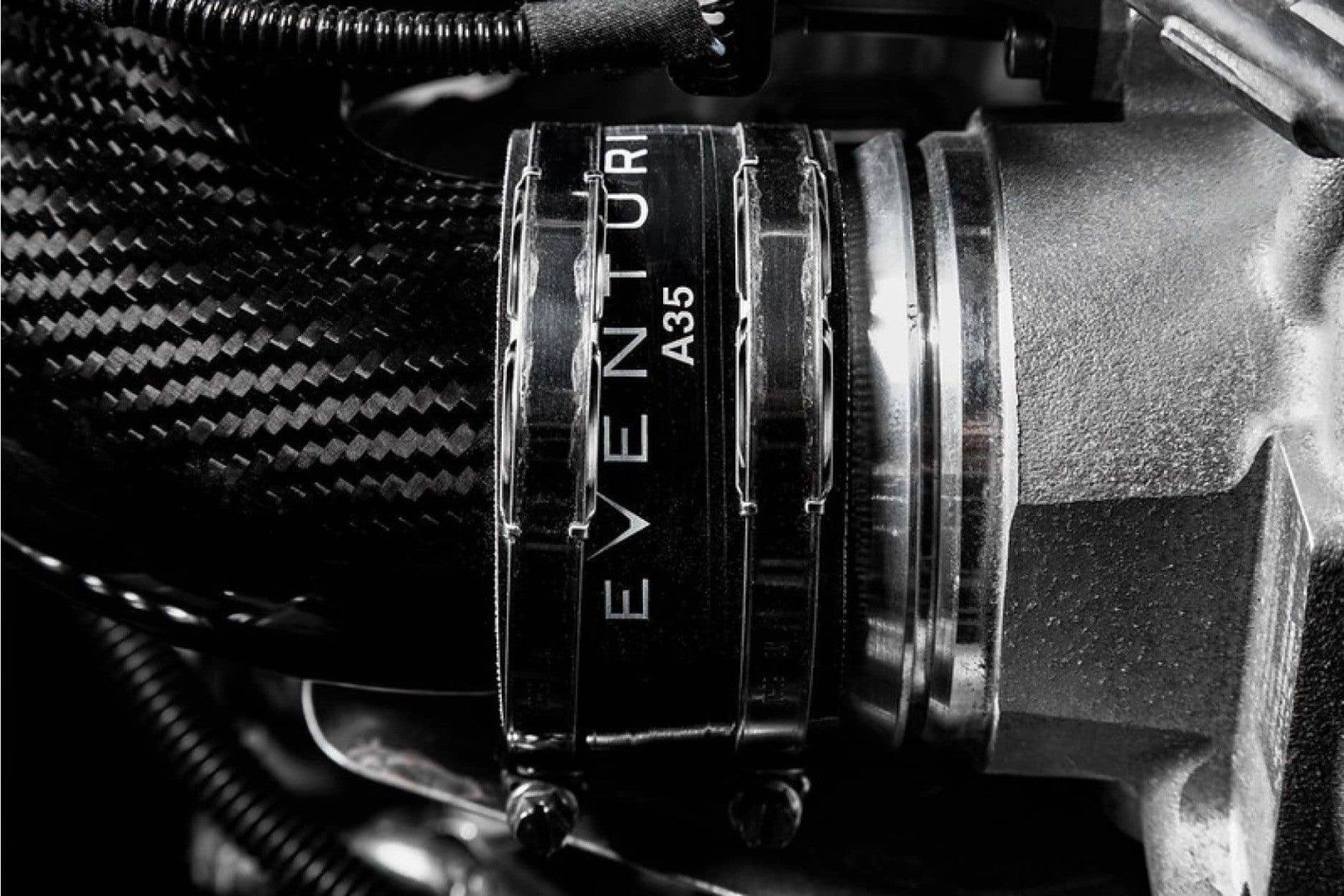

The Mercedes A35 Eventuri Turbo Tube was designed to provide the turbo with a less restrictive flow path compared to the stock tube. We have managed to increase the internal volume and eliminate the ribbed, flexible section on the airbox side. By using a completely solid tube all the way from the intake to the turbo, the flow path is smoother and airflow can thus remain more laminar. To accommodate engine movement, our A35 intake system has a "floating" tube that can move within the airbox. The shape of the carbon tube on the turbo side was optimized using CFD to minimize turbulence. The connection to the turbo is achieved through an innovative silicone coupler that features an internal thermal separator between the carbon tube and the metal turbo housing. The multiple vent ports at the rear of the tube are handled by a CNC-machined block, which also provides a smooth internal surface for airflow within the tube.

The Eventuri A35-A250 Turbo Inlet Tube is manufactured from prepreg carbon fiber and comes with a number of other components, designed for a specific purpose and manufactured to the highest standards.

It is available for the A35, CLA35, and A250. The inlet pipe is only suitable for our intake system.

Here you can find the details of the individual components and the design philosophy behind them:

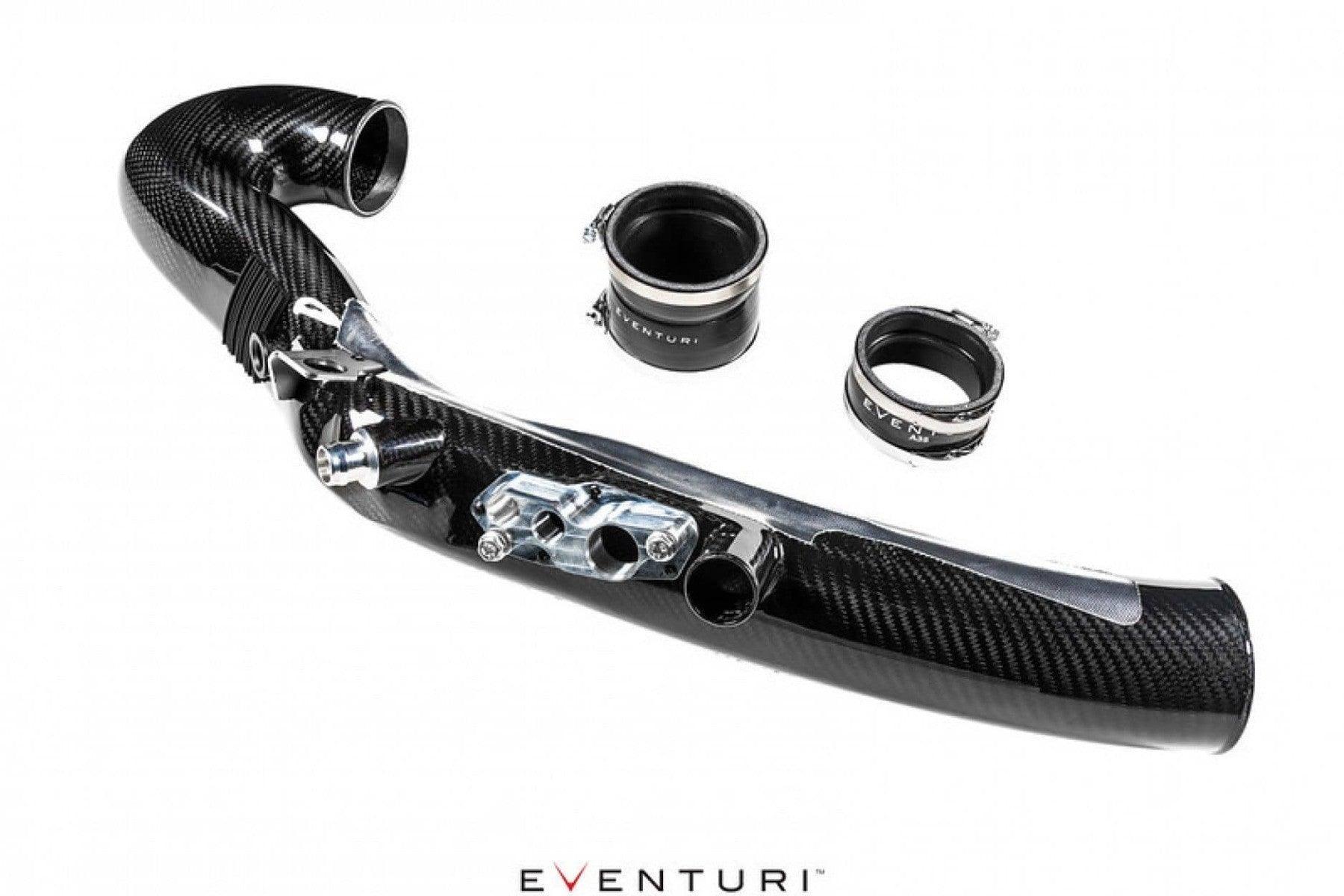

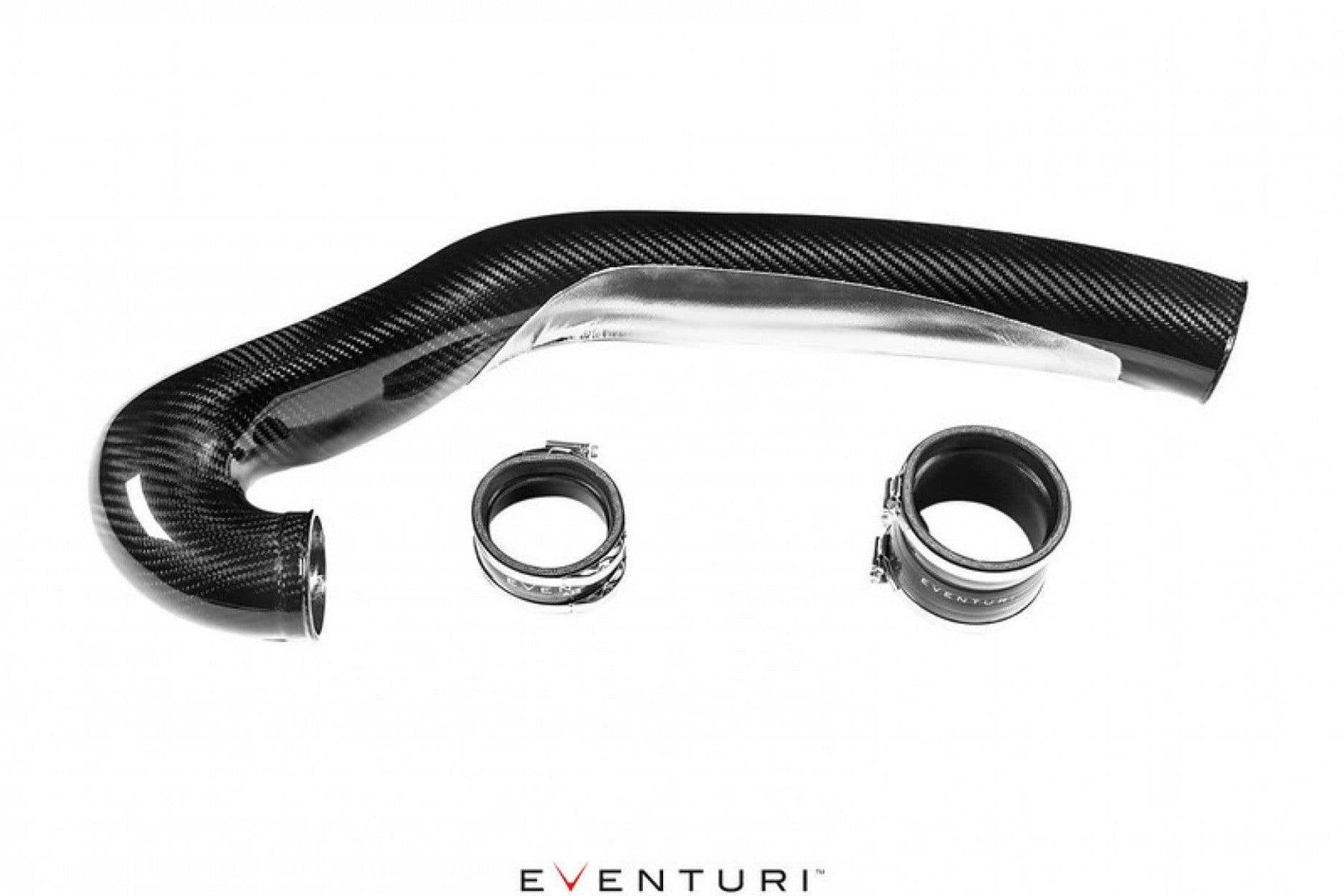

Each intake system consists of:

Prepreg Carbon Tube

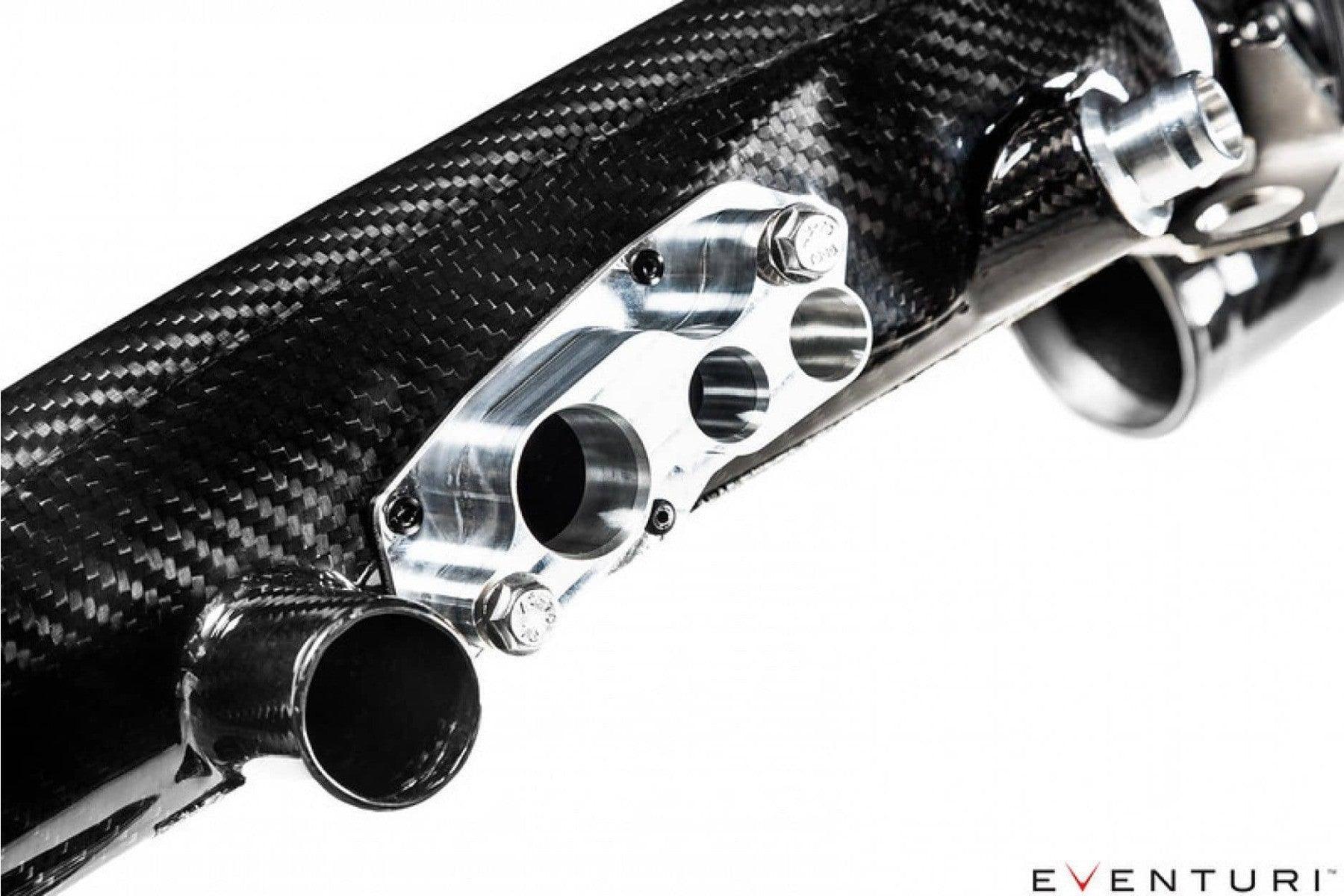

CNC machined vent block

CNC machined MAP boss

CNC machined vent stub

CNC machined reinforcing ring

Laser-cut bracket

Silicone couplers with oil-resistant lining

Marine-grade stainless steel hose clamps
