Ford Ranger Raptor 3.0 V6 RX1 (FE2-4R) ASR Exhaust Valve Control

ASR RX1 exhaust valve control for Ford – full control over the sound of your vehicle

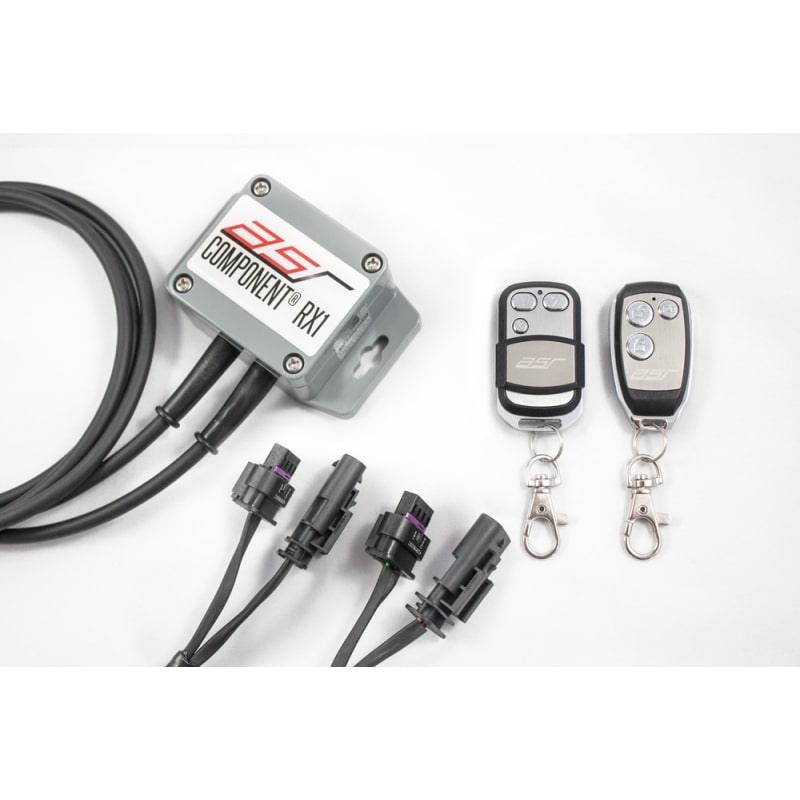

The ASR RX1 flap control unit was specially developed for Ford models with two electric exhaust flaps (type FE2-4R) and offers you the possibility to control the flaps manually at any time – conveniently via hand-held transmitter.
Suitable for: Ford Ranger Raptor 3.0 V6 292 hp (from 2022 onwards) .

With the RX1, you gain direct control over your vehicle's sound – independent of driving modes or software settings. This means you alone determine how your Raptor sounds.

Your advantages at a glance

• Regardless of driving modes
  The sound control remains entirely in your hands – regardless of the selected driving profile.

• True serial mode
  The module can be completely deactivated and remains in its factory state even after a restart. Ideal for workshops, service centers, or vehicle inspections.

• Freely programmable start mode
  Specify which flap mode your vehicle starts in – either the last used mode or a desired, fixed mode.

• No interference with the CAN bus
  No impact on other control units and insensitive to software updates.

• Plug & Play Installation
  Vehicle-specific original connectors ensure easy, residue-free installation without cable damage.

Startup mode functions

The start mode determines which flap status is active after the ignition is switched on.
The RX1 allows for flexible programming:

• Last state:
  Press the Sport mode button 5 times within 5 seconds.

• Fixed mode:
  Press and hold the desired mode button for approximately 10 seconds.
  Open and close the flaps 5 times for confirmation.

Assembly

Installation is completely plug and play via vehicle-specific connectors.
For optimal reception and protection from the elements, we recommend installation in the trunk. The cable lengths are designed for this purpose.
The system can be dismantled at any time – without leaving a trace.

Other features

• No error messages in the system

• No modification to the standard CAN bus

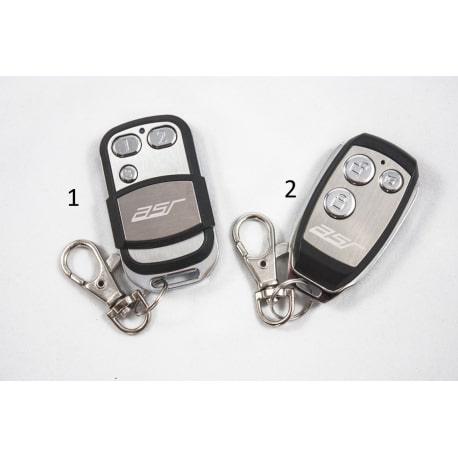

• High-quality hand-held transmitter with brushed stainless steel front and long range

• Durable, safe operation for electric flap systems

• Brand product Made in Germany

Notes

• Not approved for use on public roads – for use only in racing, for show purposes or for export.

• The flaps should not be completely closed at full load.

• Installation at your own risk

• No liability is accepted for damages resulting from failure to heed these instructions.
