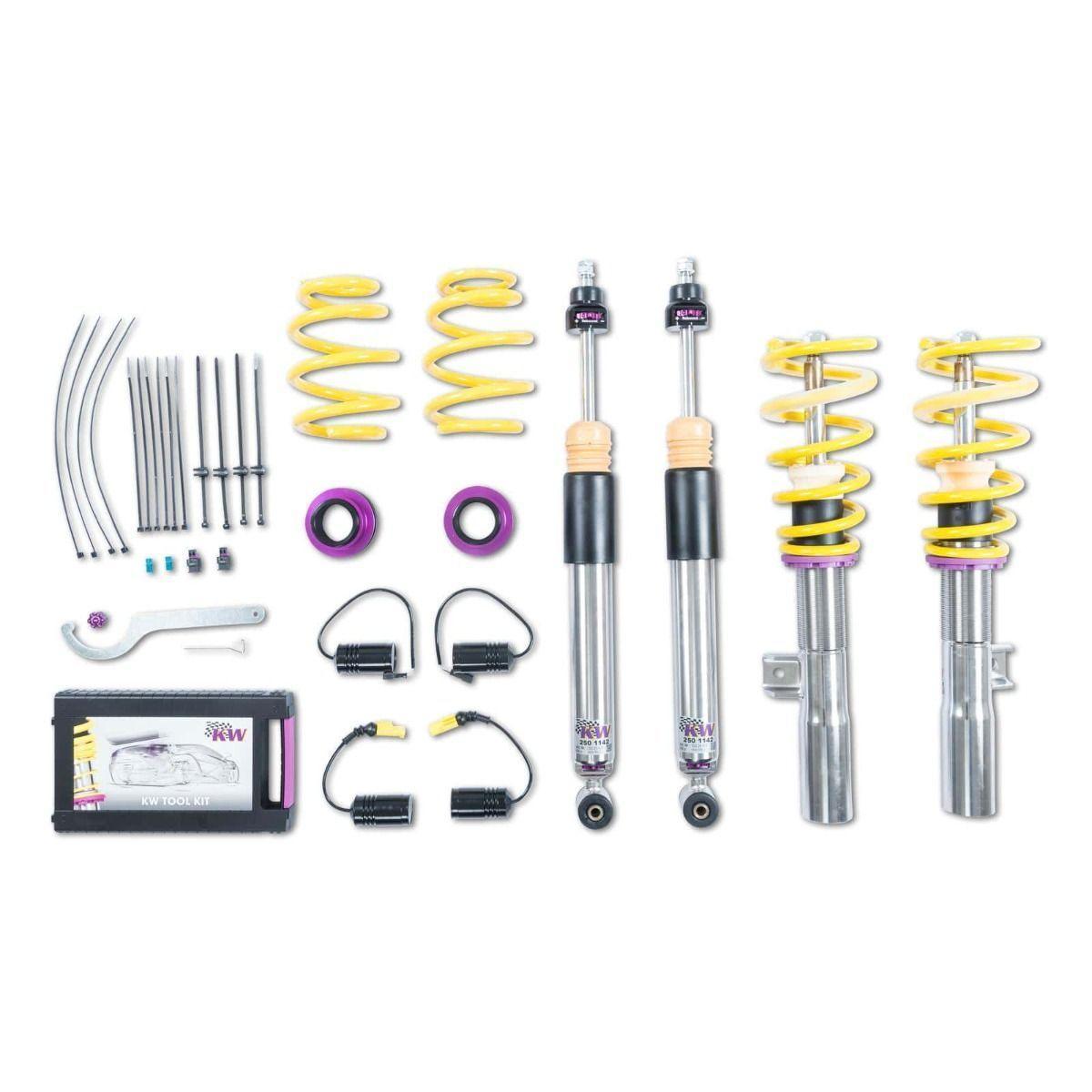

KW coilover kit V3 for Mercedes AMG A 35 4-matic+ W177

Vehicle type: MERCEDES-BENZ A-CLASS (W177) F2A 03/2018- AMG A 35 4-matic+ (177.053) - 285kW - 1991ccm - 4 cyl. - All-wheel drive

Only models built: 12/2018- Axle load VA/HA (kg): -1180/-1055

• Lowering VA/HA (mm): 10-30/5-30
• Version: V3
• Hardness adjustment: rebound and compression
• Material: stainless steel
• Adjustment VA/HA: thread/thread
• Registration: Part certificate (§19.3)

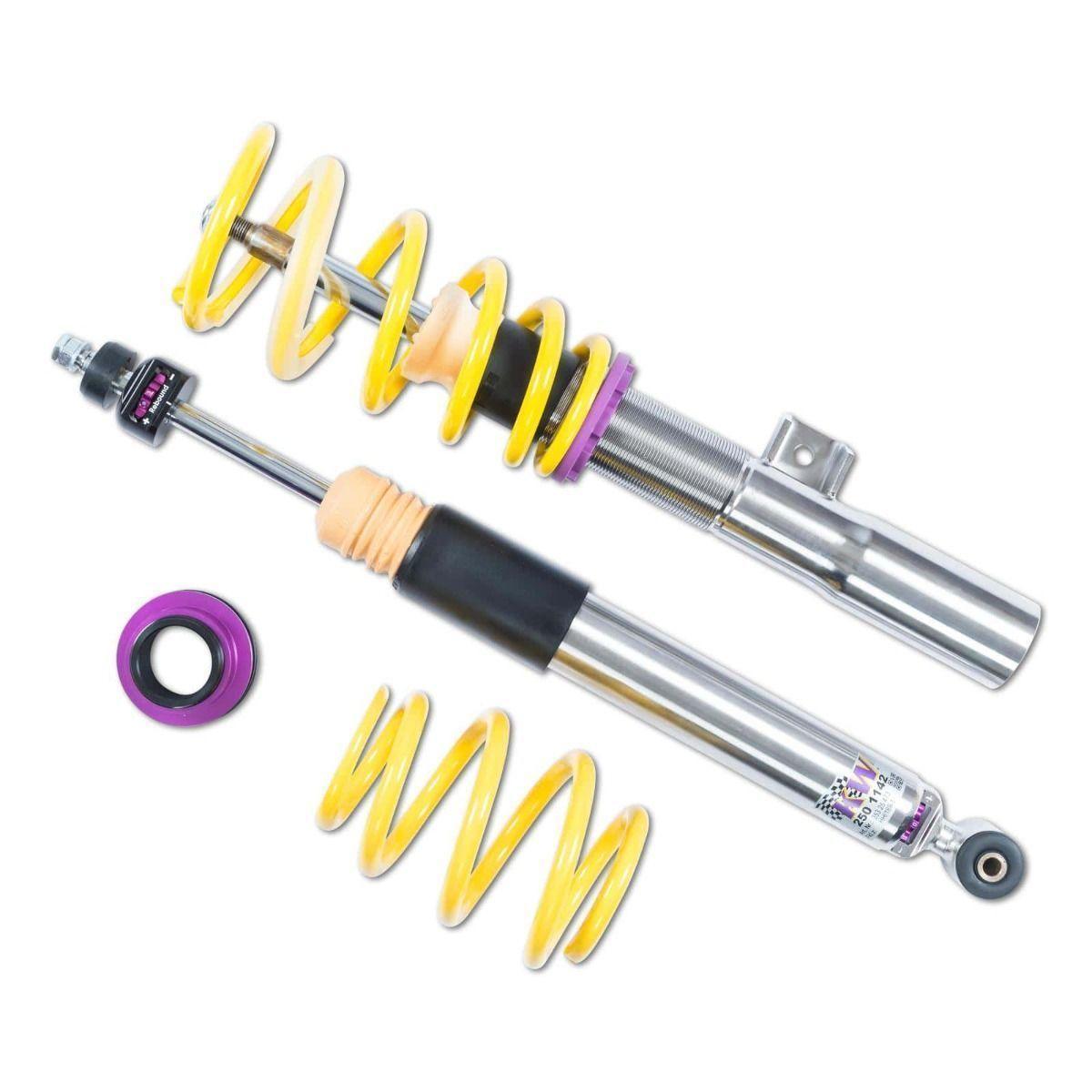

KW V3 coilover suspension

Unlimited individuality for performance & comfort. Damper force adjustment separately for rebound & compression.

As with every KW coilover suspension, our suspension engineers also develop a sporty, harmonious basic setup for the vehicle-specific applications of the KW V3. In addition to tests on our KW 7-post driving dynamics test bench, we also carry out extensive test drives on country roads, the motorway and even on the Nürburgring Nordschleife, test kilometer after test kilometer, to guarantee you the perfect suspension setup. For years, the KW V3, one of the world's top aftermarket products, has been the reference for coilover suspensions. With its damper characteristics, high-quality workmanship and excellent durability, it impresses demanding sports car drivers, tuners, large and small series manufacturers such as Alpina, MTM, Manthey, Oettinger and many other well-known companies in the international automotive industry.

cutting-edge technology from motorsport

With the KW V3 you get much more than just a sporty lowering and excellent handling on all roads. It is based on our many years of experience as a chassis manufacturer and supplier in international motorsports such as in the touring car series ADAC GT Masters, FIA GT1, FIA GT3, International GT Open, WTC, VLN and also at the legendary ADAC Zurich 24h race Nürburgring.

Similar to our racing coilovers from the KW Competition range, the rebound and compression stages of the KW V3 can be adjusted independently of each other. This individual adjustment option is valued by refiners, sports car manufacturers, tuners and demanding drivers worldwide.

The perfect chassis setup for significantly more driving dynamics

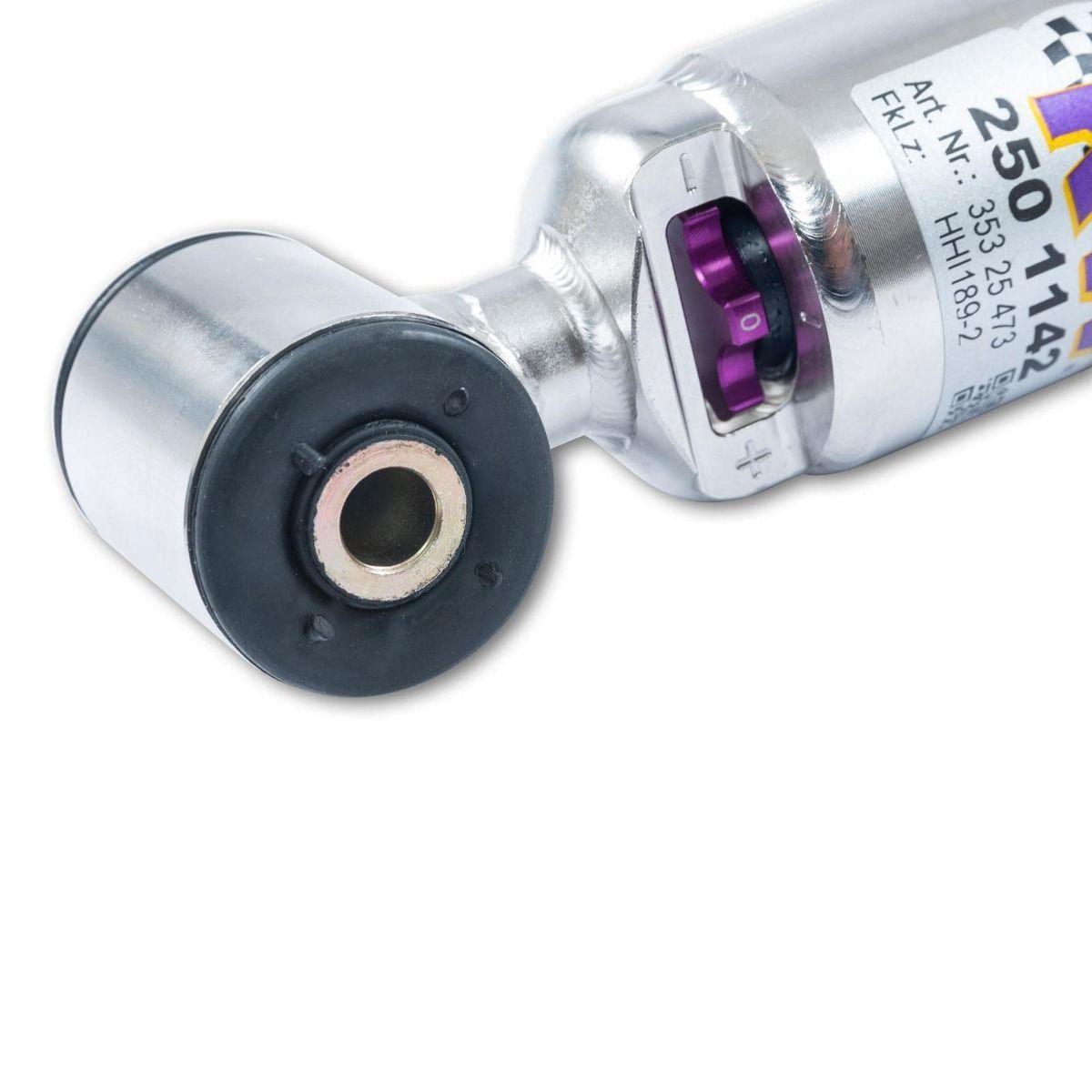

If you have already made some initial performance modifications to your sporty road vehicle, it is easy to take these into account in the damper tuning with the KW V3. The patented KW valve technology for separate tuning of the rebound and compression stages allows you to individually adapt the vehicle-specific basic tuning of KW. For example, the KW bottom valve, which can be adjusted in twelve clicks in the low-speed range of the compression stage, gives you the flexibility to even take the tire characteristics of your high and ultra-high-performance road tires into account when tuning the suspension.

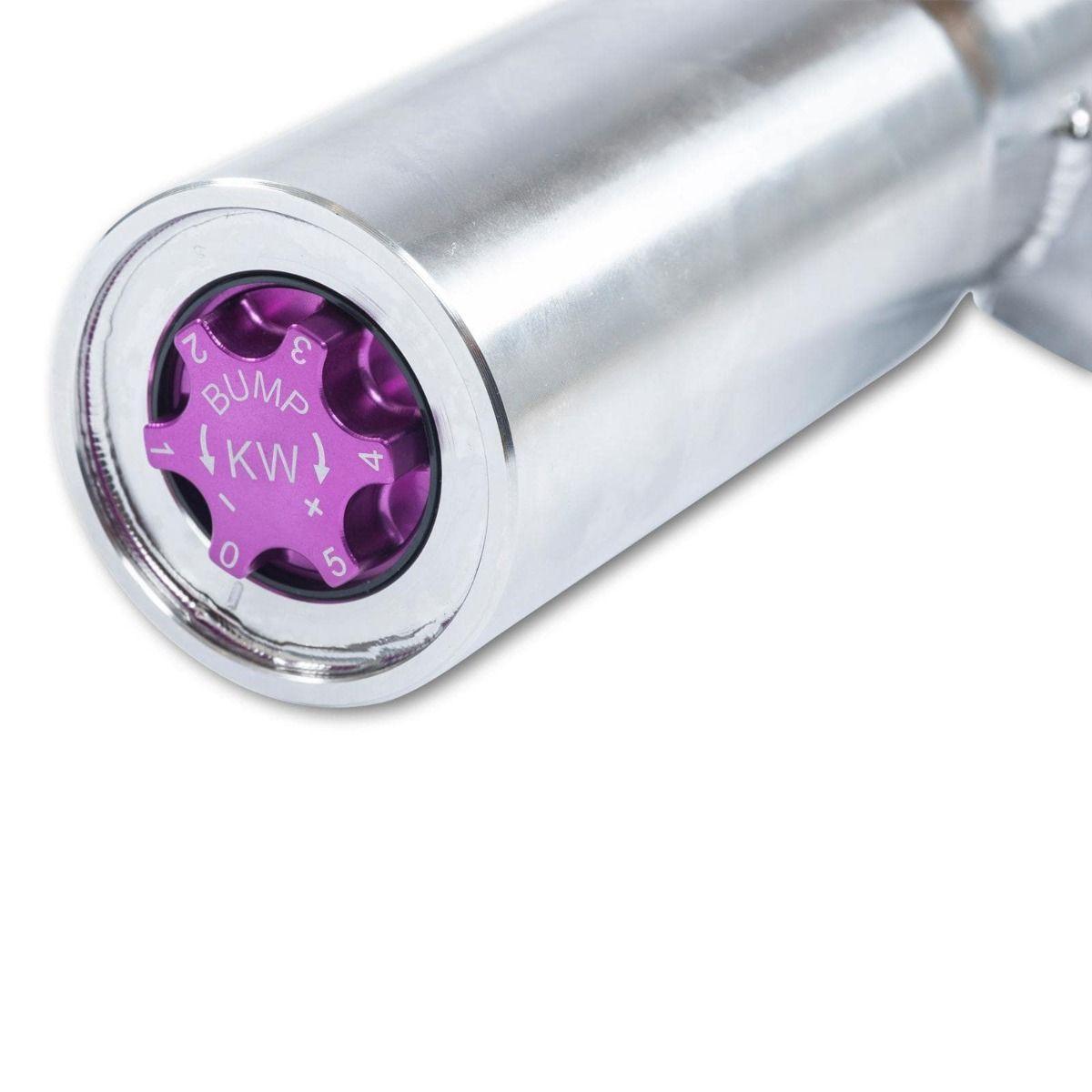

Thanks to the patented compression adjustment at the lower piston end of the stainless steel housing, you don't even need any tools. The adjustable compression adjustment with its twelve precise clicks allows you to influence the body roll and sway movements by hand without having to change the rebound damping that optimally matches the spring rate.

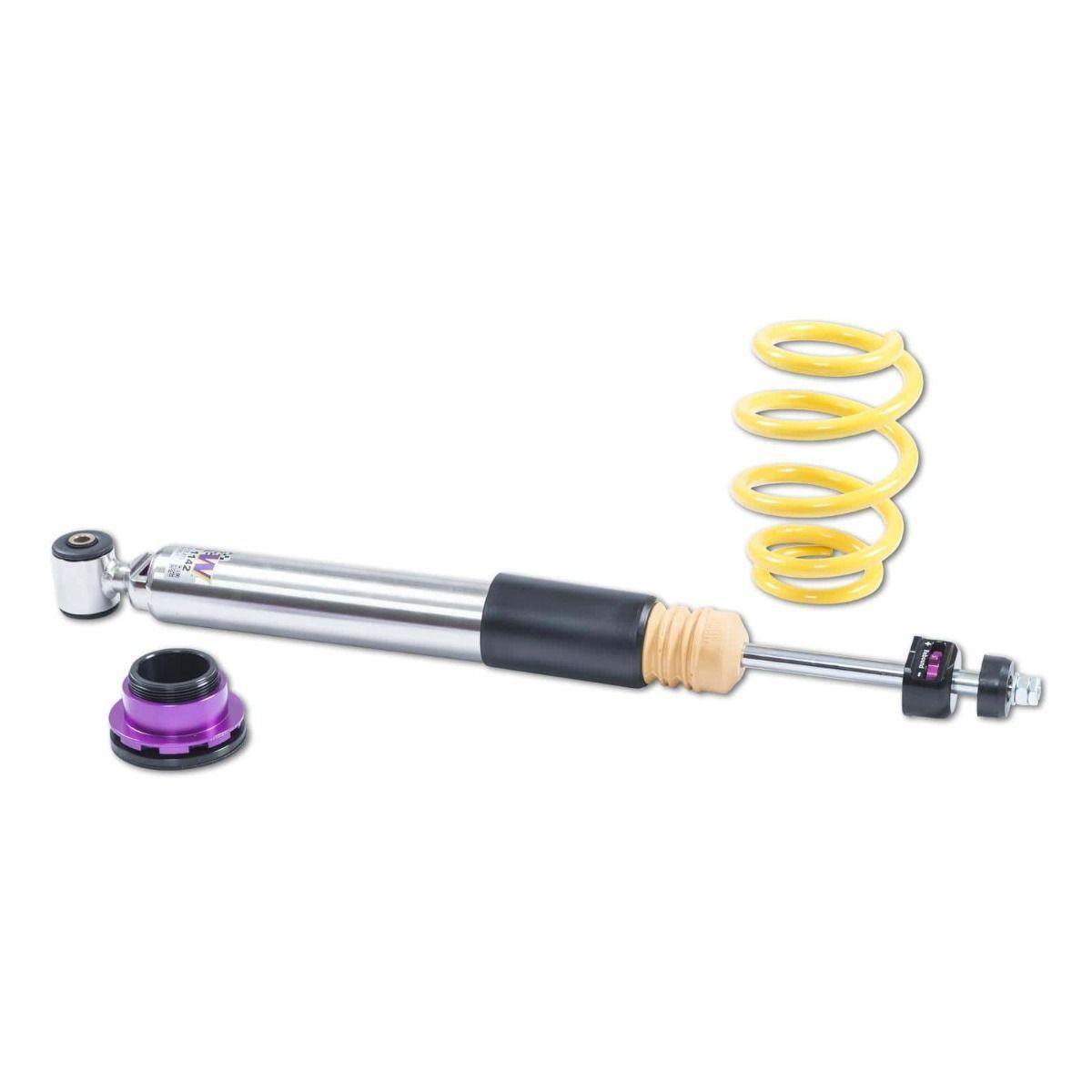

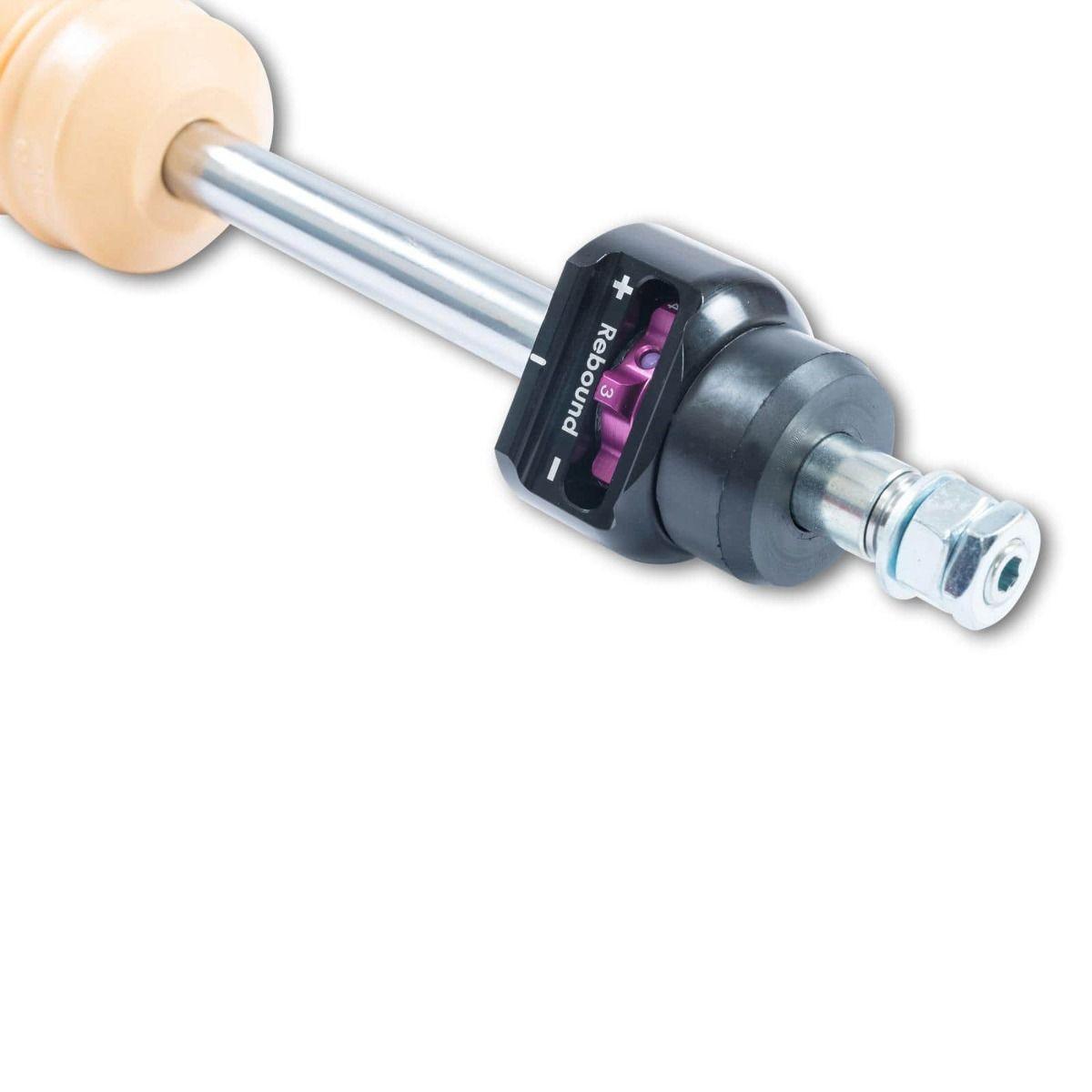

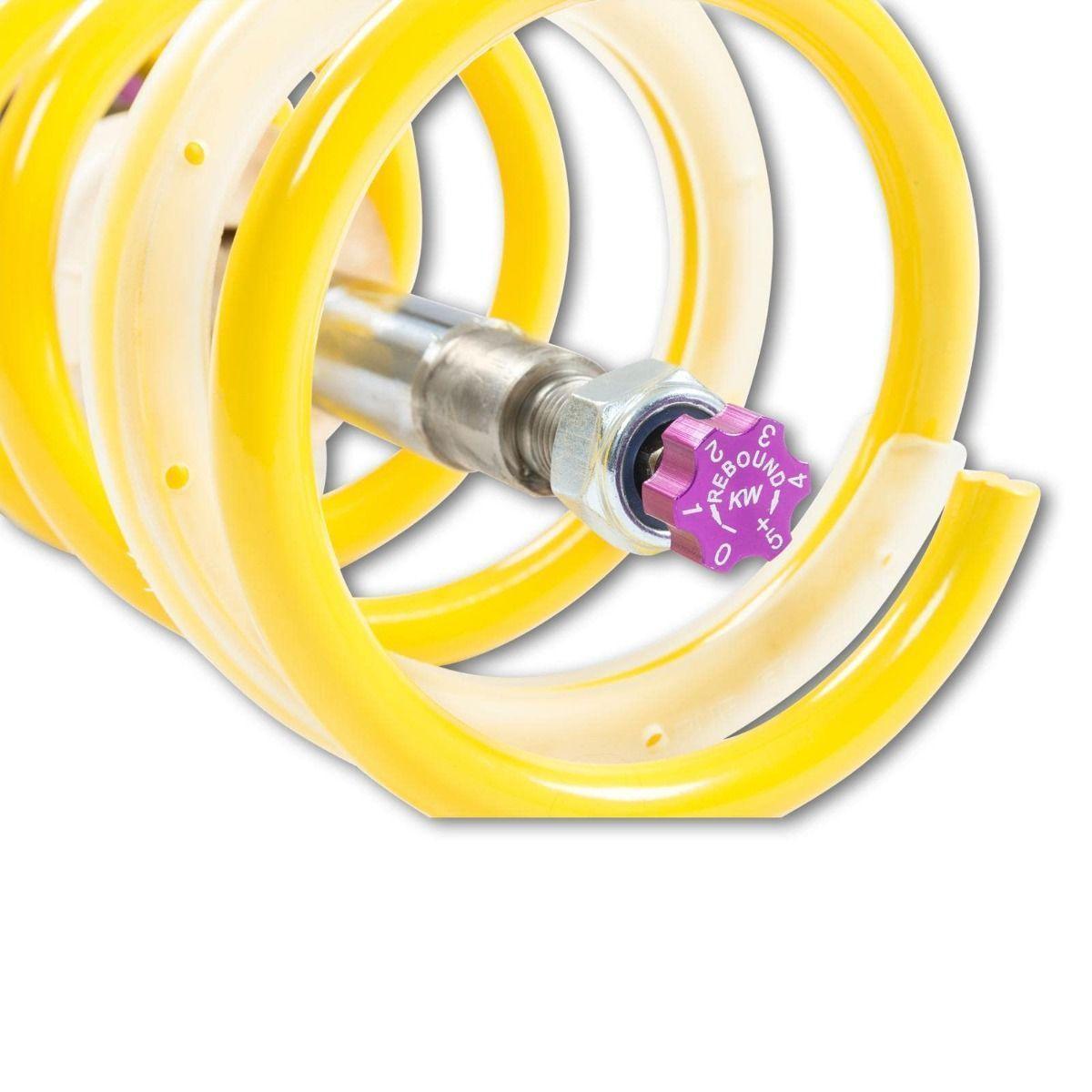

With the individually adjustable rebound adjustment of the KW V3, you can directly influence the handling and comfort through the precise click adjustment. Depending on the vehicle type, the rebound valves of the KW twin-tube dampers are adjusted at the upper end of the piston rod using an integrated adjustment wheel or the plug-on adjustment wheel included in the scope of delivery.

By increasing the traction force using the adjustment wheel, the bodywork movements are reduced. This means your car stays on track more accurately and you have even more stability at higher cornering speeds. For example, if you switch from the wheel/tire combinations approved by your car manufacturer to larger rims, you can use the KW V3 to perfectly coordinate the handling of your car and your new alloy wheels.

High-quality, individual and durable

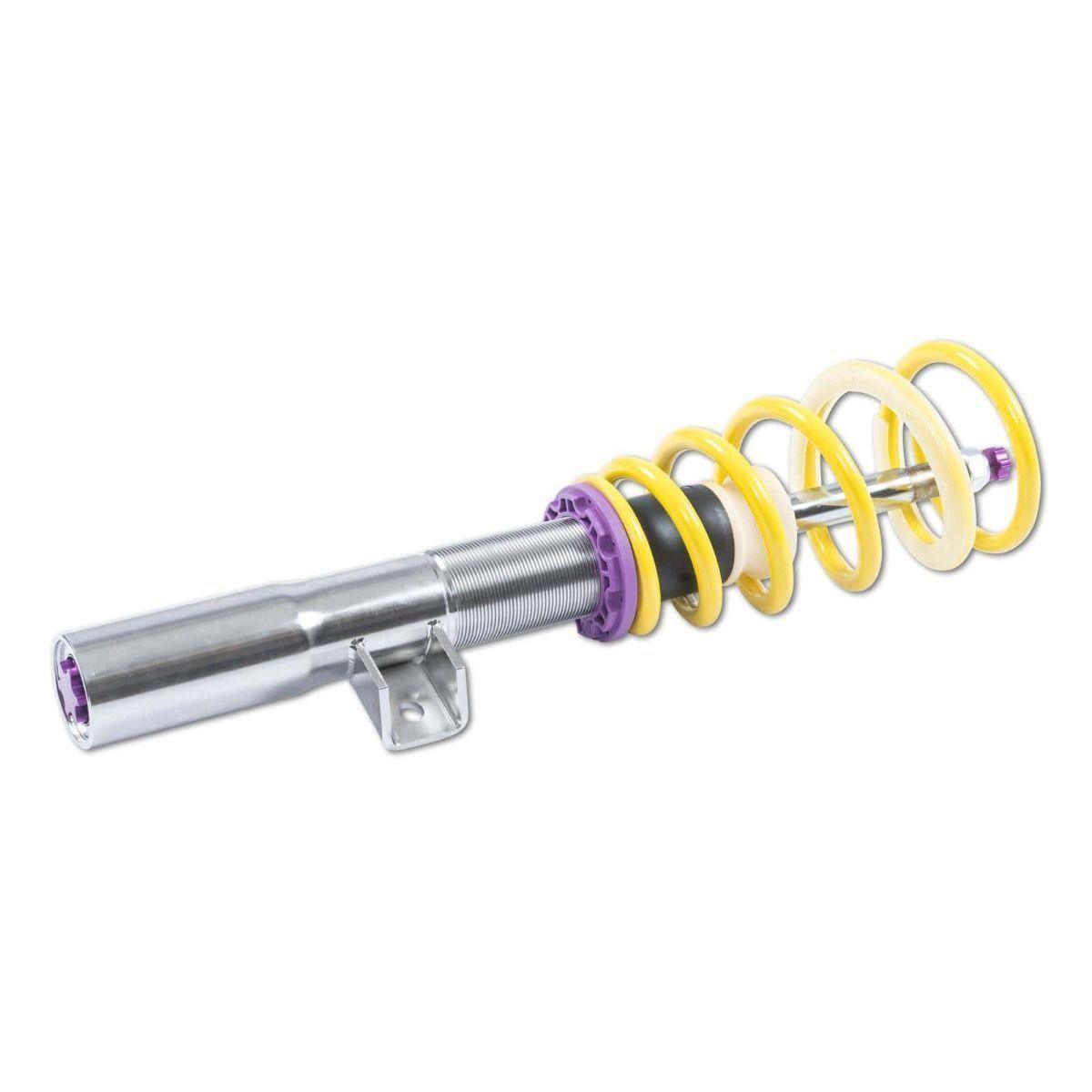

The KW V3 is subjected to extensive quality tests during production and every single damper is checked. This is the only way we can live up to our claim of providing a guarantee of up to five years when a KW V3 coilover suspension is installed by a KW specialist dealer. Thanks to the delicate workmanship and the use of high-quality components, the KW coilover struts made of stainless steel, for example, are 100 percent rust-free and have an unlimited service life.

This means that the functionality of the stepless lowering via the dirt-resistant KW trapezoidal thread and the KW polyamide thread ring is not impaired even after years. The individual lowering with its stepless adjustment range allows you to visually emphasize the sportiness of your vehicle. A feature that is very popular in the performance-oriented tuning scene.

- freely adjustable damping technology in tension and compression damping

- stainless steel technology inox-line

- individual, stepless lowering

- tested adjustment range

- high-quality components for a long service life

- adjustable rebound damping with 16 exact clicks

- 12-way adjustable compression damping with click adjustment

- unique, independently acting damping force adjustment

Setup: The individually adjustable rebound and compression damping of the KW V3

The KW V3 is the ideal accessory for performance-oriented drivers and tuning enthusiasts who place great demands on the sportiness of their vehicles. The dampers, which can be adjusted separately in rebound and compression, allow extensive damper tuning with their well-thought-out click adjustment. This makes it easy to directly influence the steering behavior, directional stability, tire grip and handling properties for safe controllability at the limit.

Suitable for

• MERCEDES-BENZ A-CLASS (W177) F2A 03/2018- AMG A 35 4-matic (177.051) Hatchback Petrol 225 KW 1991 cc All-wheel drive
• MERCEDES-BENZ A-CLASS (W177) F2A 03/2018- AMG A 45 4-matic+ (177.053) Hatchback Petrol285 KW 1991 cc All-wheel drive
• MERCEDES-BENZ A-CLASS (W177) F2A 03/2018- AMG A 45 S 4-matic+ (177.054) Hatchback Petrol 310 KW 1991 cc All-wheel drive
• MERCEDES-BENZ A-CLASS Saloon (V177) F2A 09/2018- AMG A 35 4-matic (177.151) Saloon Petrol 225 KW 1991 cc All-wheel drive
• MERCEDES-BENZ CLA (C118) F2CLA 03/2019- AMG CLA 35 4-matic (118.351) Coupe petrol 225 KW 1991 ccm all-wheel drive
• MERCEDES-BENZ CLA (C118) F2CLA 03/2019- AMG CLA 45 4-matic+ (118.353) Coupe petrol 285 KW 1991 ccm all-wheel drive
• MERCEDES-BENZ CLA (C118) F2CLA 03/2019- AMG CLA 45 S 4-matic+ (118.354) Coupe petrol 310 KW 1991 ccm all-wheel drive
• MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 35 4-matic (118.651) station wagon petrol 225 KW 1991 ccm all-wheel drive
• MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 45 4-matic+ (118.653) station wagon petrol 285 KW 1991 ccm all-wheel drive
• MERCEDES-BENZ CLA Shooting Brake (X118) F2CLA 06/2019- AMG CLA 45 S 4-matic+ (118.654) station wagon petrol 310 KW 1991 ccm all-wheel drive
