Lowering module for Mercedes Benz GLC 63 AMG X253 C253 Airmatic - APP control

With our latest Active Suspension Control module, you can lower your air suspension / Airmatic vehicle individually via app.

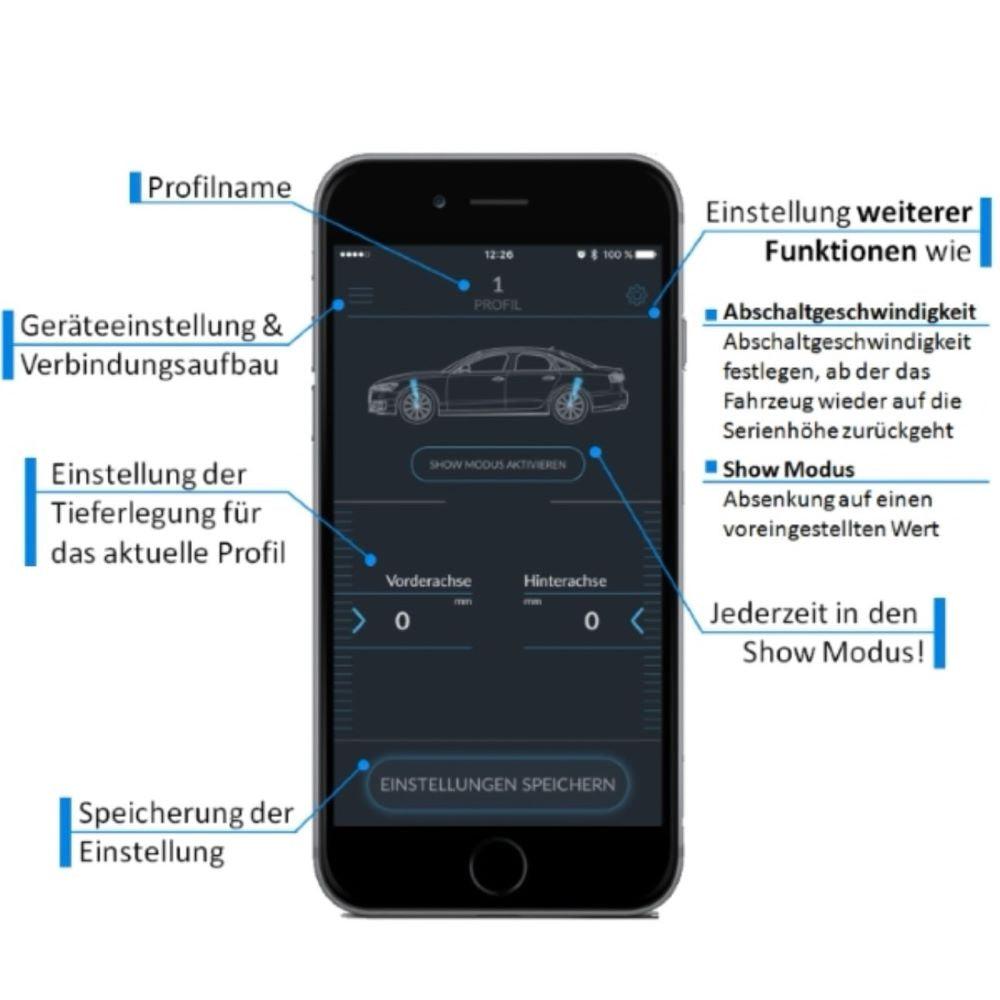

Some additional functions are available with the free app:

• Standard functionalities
  You can still operate your air suspension via the Agility Select program; it will only be lowered or raised by the desired change value.
• Agility Select Profile
  You can assign a separate lowering or raising to each Drive Select mode:

• Comfort, Eco, Sport, Sport+ and Race can each be configured with a different height.
• In the Individual program, you can select the lowering profile via the "Engine parameter"

• Standard height
  Via APP, you can set the cut-off speed yourself, at which your vehicle returns to the standard height or maintains the set lowering.

• Show Mode
  If necessary, the air suspension can be lowered to a preset value using Show Mode.

Installation:
Installation on the Mercedes Benz AMG GLC X253/C253 is plug & play to original connectors.
The original driving profiles can also be used to adjust the air suspension. The car is then lowered or raised by the desired change value.

Compatibility:
The Active Suspension Control is compatible with all engine variants of the Mercedes Benz GLC type X253 and type C253.

Scope of delivery:

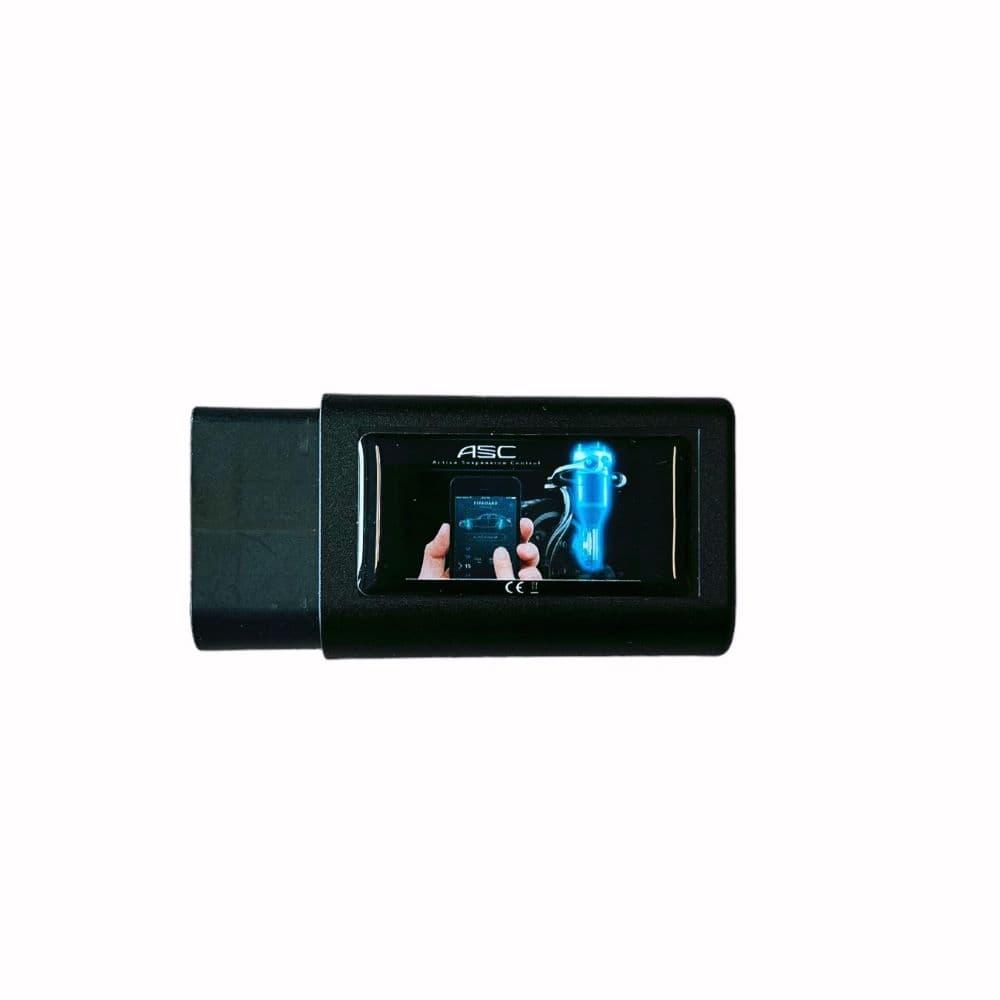

• 1x Active Suspension Control BLE control unit
• Cable set / adapter (depending on model and engine variant)

Notes:

• The lowering module is linked to the vehicle identification number and can only be used for the respective vehicle.
• The control unit is delivered without a certificate and is therefore not approved in the scope of the German Road Traffic Licensing Regulations (StVZO).
• Only suitable for vehicles with standard air suspension
• Please state the model and engine variant in the comment field of the order.
• We recommend installation by a specialist workshop.
• *model-dependent deviations possible
