Lowering module for Mercedes GLC X253 C253 with APP control

With our latest Active Suspension Control module, you can individually lower your vehicle with air suspension / Airmatic via app.

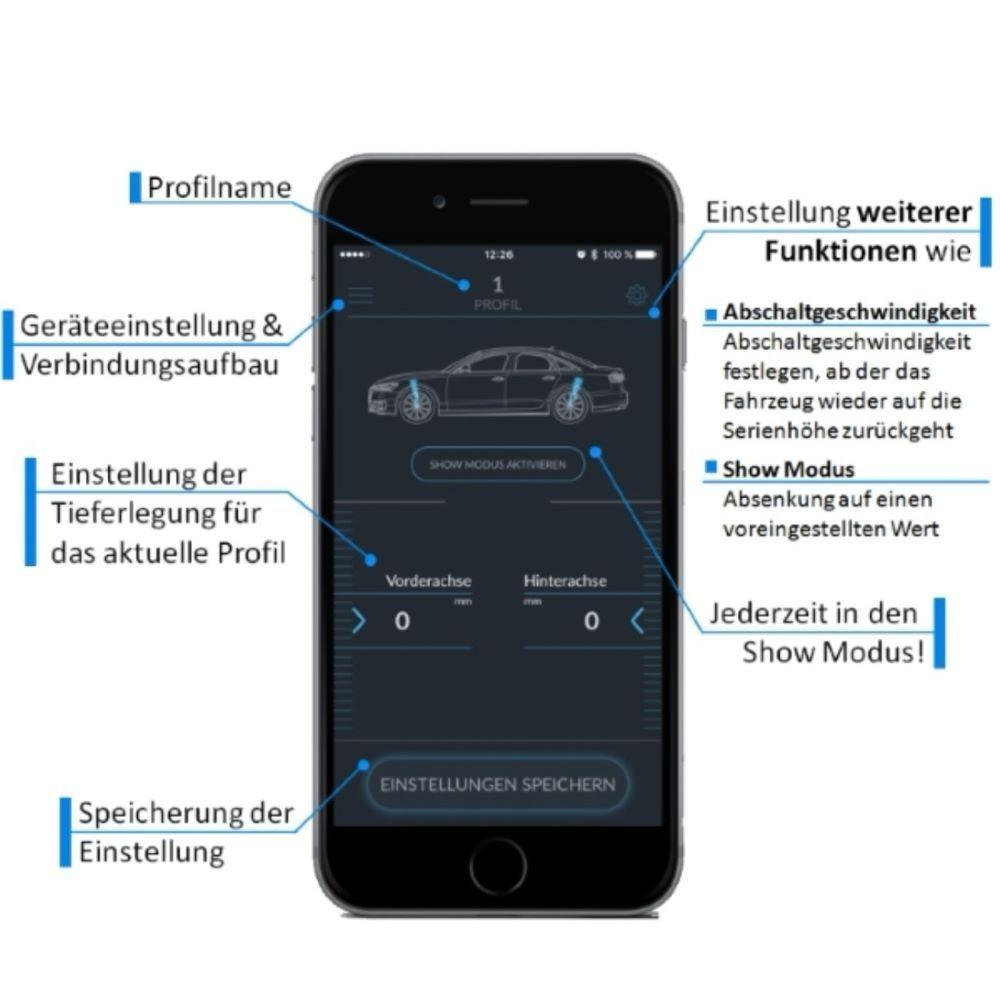

With the free app, several additional functions are available:

• Standard functionalities
  You can still operate your air suspension via the Agility Select program; it is merely lowered or raised by the desired change value.

• Agility Select Profile
  You can assign a separate lowering or raising to each Drive Select mode:

• Comfort, Eco, Sport, Sport+, and Race can each be configured with a different height.
• In the Individual program, you can select the lowering profile via the "Engine parameter".

• Standard height
  Via the APP, you can set the cut-off speed yourself, at which your vehicle returns to the standard height or maintains the set lowering.

• Show mode
  The air suspension can be lowered to a preset value if required using the show mode.

Installation
Installation on the Mercedes Benz GLC X253/C253 is Plug&Play using original connectors.
To adjust the air suspension, the original installed driving profiles can also be used. The car is then lowered or raised by the desired change value.

Compatibility
The Active Suspension Control is compatible with all engine variants of the Mercedes Benz GLC Type X253 and Type C253.

Scope of delivery

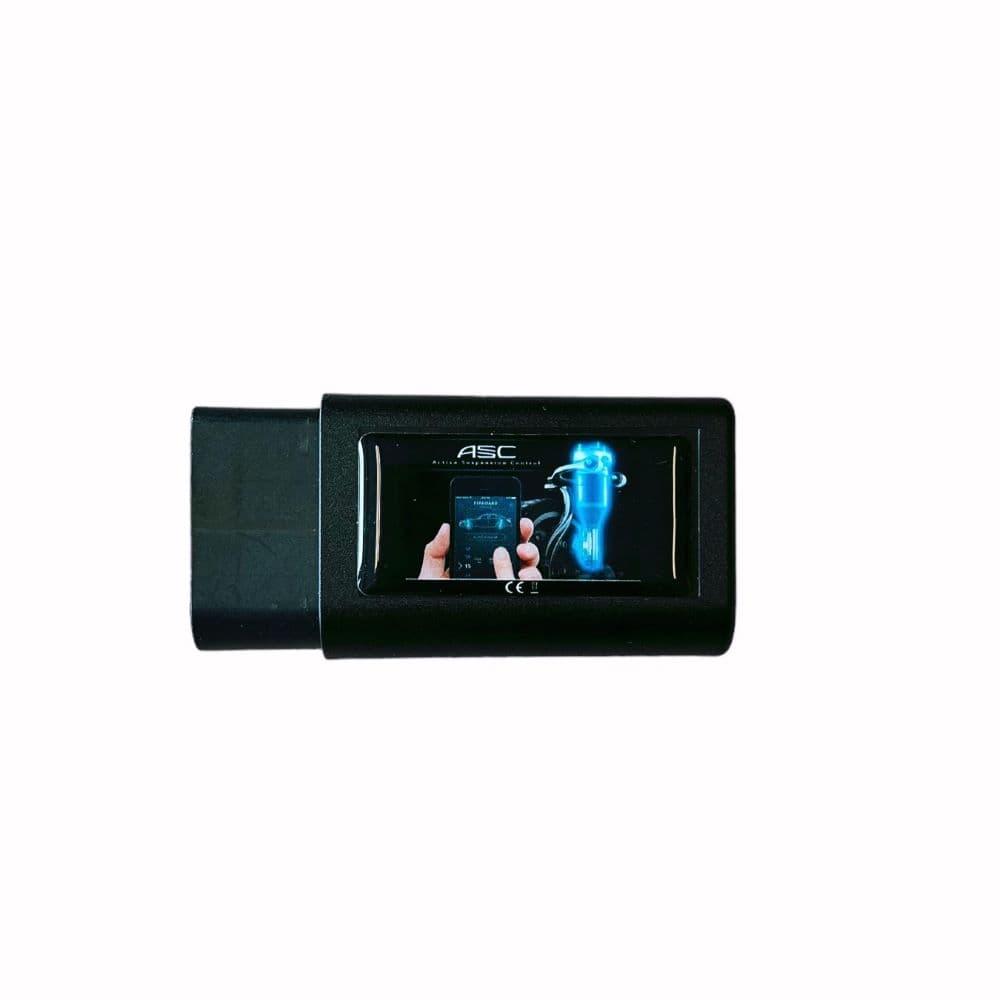

• 1x Active Suspension Control BLE control unit
• Cable set / adapter (depending on model and engine)

Notes

• The lowering module is tied to the chassis number and can only be used for the respective vehicle.
• The control unit is delivered without expert assessment and is therefore not approved under the German Road Traffic Licensing Regulations (StVZO).
• Only suitable for vehicles with standard air suspension
• Please specify the model and engine type in the comment field of the order.
• We recommend installation by a specialist workshop.
• *model-dependent deviations possible
