Wagner Tuning Competition Intercooler Kit Skoda Superb 3V engines EA888 Gen.3

increased performance at the highest level

COMPETITION INTERCOOLER KIT VAG 1.8 - 2.0TSI

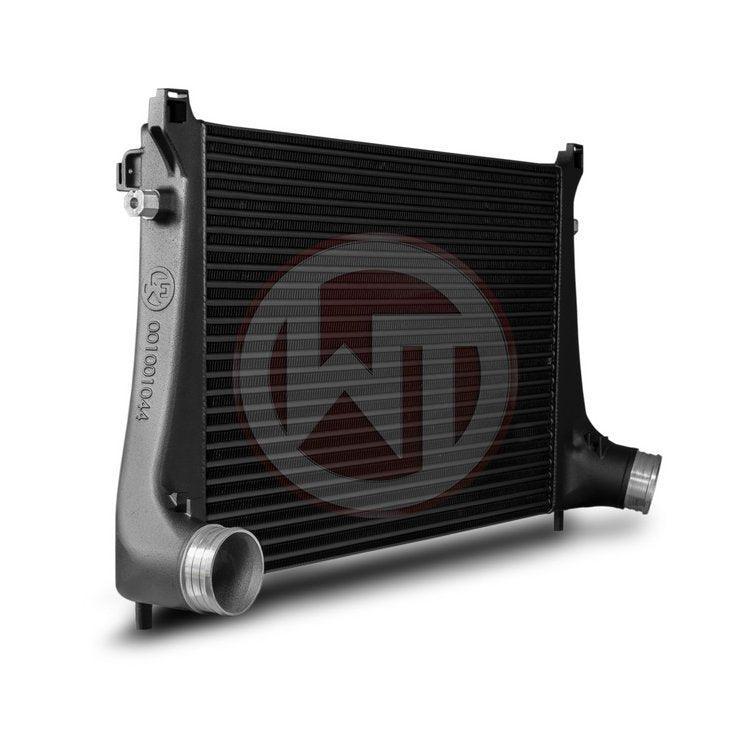

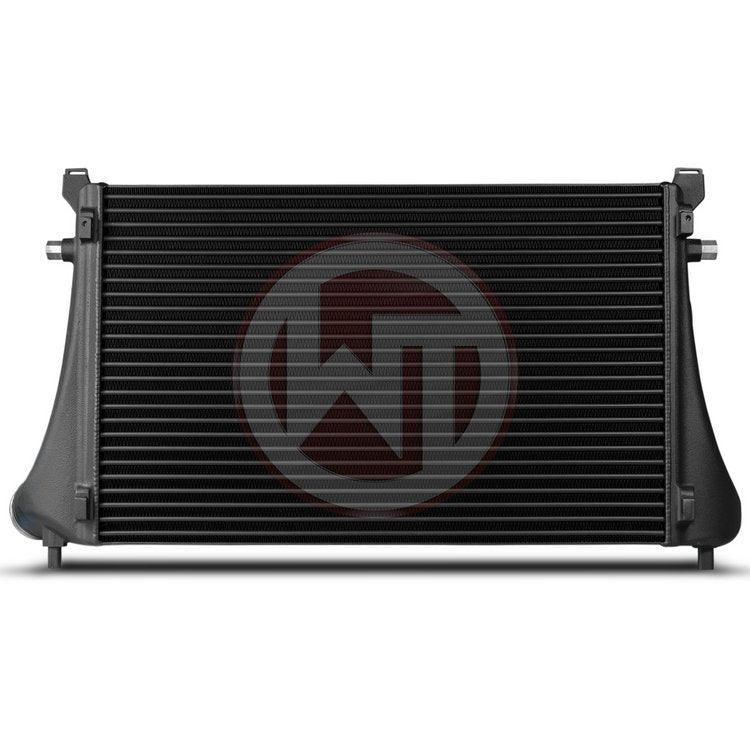

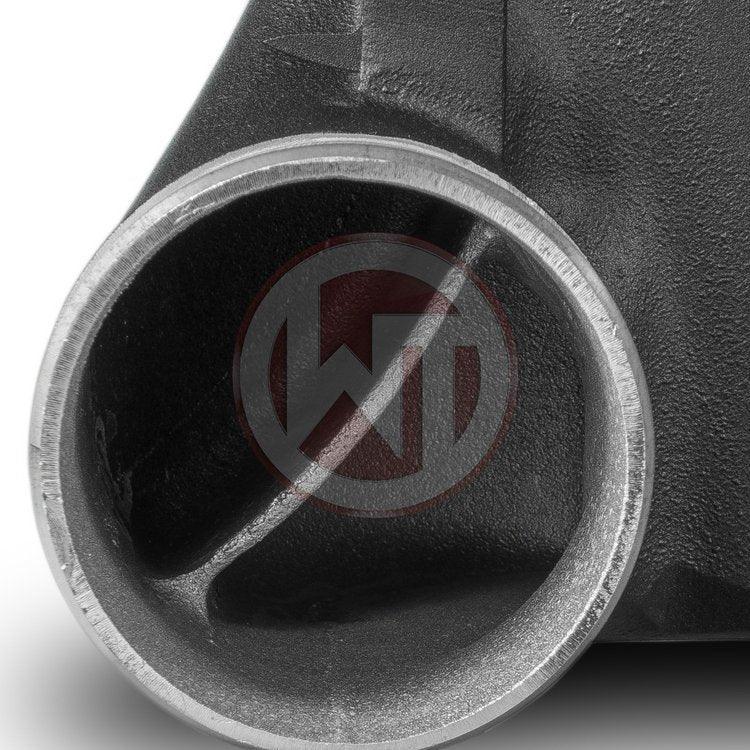

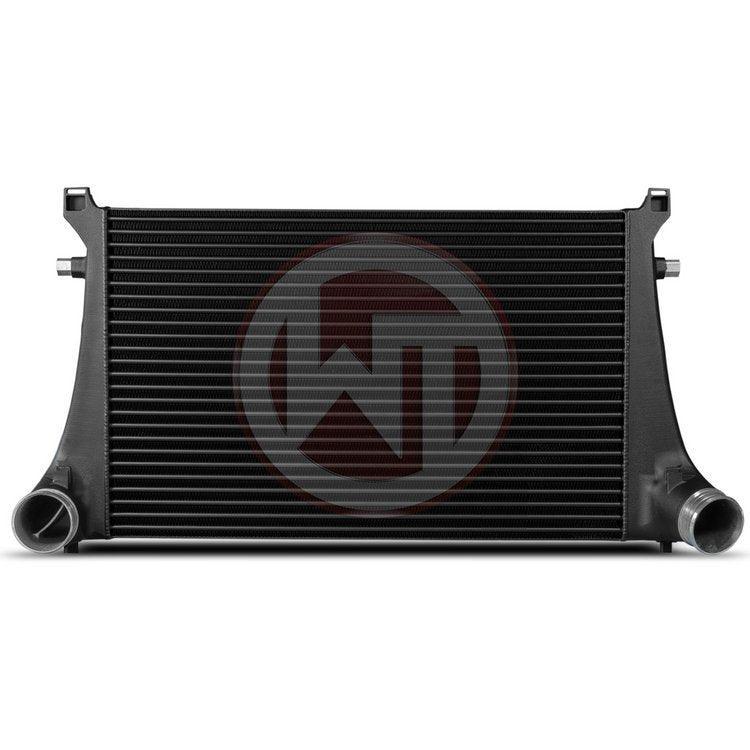

The Competition intercooler has the following mesh dimensions (640mm x 410mm x 65mm) and thus has 17 liters of external charge air volume (OEM 9 liters). The newly developed Competition high-performance mesh (Tube Fine) ensures sufficient air flow to the adjacent components, such as the water cooler, and is also very light. The intercooler therefore has a total weight of just 8.9kg. The cast aluminum end boxes were created in CAD and optimized for the best possible internal air flow using CFD simulations. An air duct integrated in the end box enables the Competition high-performance mesh to be filled evenly. The inlets and outlets of the intercooler have been enlarged to Ø 70mm, so this kit comes with reinforced silicone hoses.

Overall, this intercooler has far less back pressure than the standard intercooler. In addition, all of our intercoolers have an anti-corrosion coating with heat-conducting properties. This guarantees long-lasting and optimal cooling with a significant increase in performance.

Installation is carried out by replacing the OEM intercooler and is easy to carry out. All of our products are subject to constant quality monitoring.

The WAGNERTUNING Competition intercooler kit for the VAG 1.8TSI - 2.0TSI engine is suitable for the following vehicles:

• - VW Golf 7+7.5 GTI 2.0 TSI 162-228KW/220-310PS (incl. Facelift- Performance and Clubsport[S and TCR models)
• - VW Golf 7+7.5 R 2.0 TSI 221-228KW/300-310PS (incl. facelift models)
• - VW Arteon 2.0 TSI 140-206KW/190-280PS (only 7 speed DSG)
• - VW T-Roc 2.0TSI 4Motion 140KW/190PS (not included in the parts certificate)
• - VW T-Roc R 4Motion 221KW/300PS (not included in the parts certificate)
• - Skoda Superb 3V 2.0TSI 162KW/220PS
• - Skoda Superb 3V 2.0TSI 206KW/280PS

With further modifications (for more information contact us) to the vehicle, also suitable for:

• - Audi Q2 40TFSI 140KW/190PS* (not included in the parts certificate)
• - Audi SQ2 221KW/300PS (not included in the parts certificate)
• - Audi A3 8V 1.8TSI 132KW/180PS*
• - Audi A3 8V 2.0TSI 140KW/190PS*
• - Audi S3 8V 2.0TSI 221-228KW/300-310PS*
• - Audi TT 8S 2.0TFSI 169KW / 230PS*
• - Audi TTS 8S 2.0TSI 228KW/310PS*
• - Seat Leon 5F Cupra 2.0TSI 195-272KW/265-370PS* (incl. Cupra ST 265-370 & Cupra R)
• - Skoda Octavia 5E 1.8TSI 132KW/180PS*
• - Skoda Octavia 5E RS 2.0TSI 162-180KW/220-245PS*

Due to the additional adjustments, the installation effort increases to a total of approx. 5-6 hours:

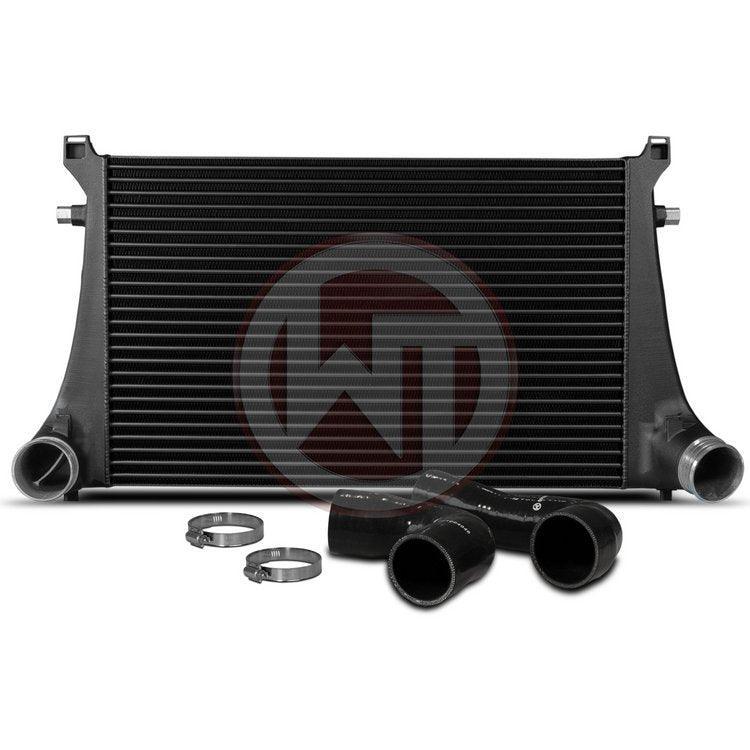

Scope of delivery:

1 intercooler

2 silicone hoses

2 hose clamps

1 mounting material

1 assembly instructions

1 TÜV parts certificate (OPF models excluded)
