Wagner Tuning Competition intercooler kit VW Golf 7 R engines EA888 Gen.3

Maximum performance at the highest level

COMPETITION INTERCOOLER KIT VAG 1.8 - 2.0TSI

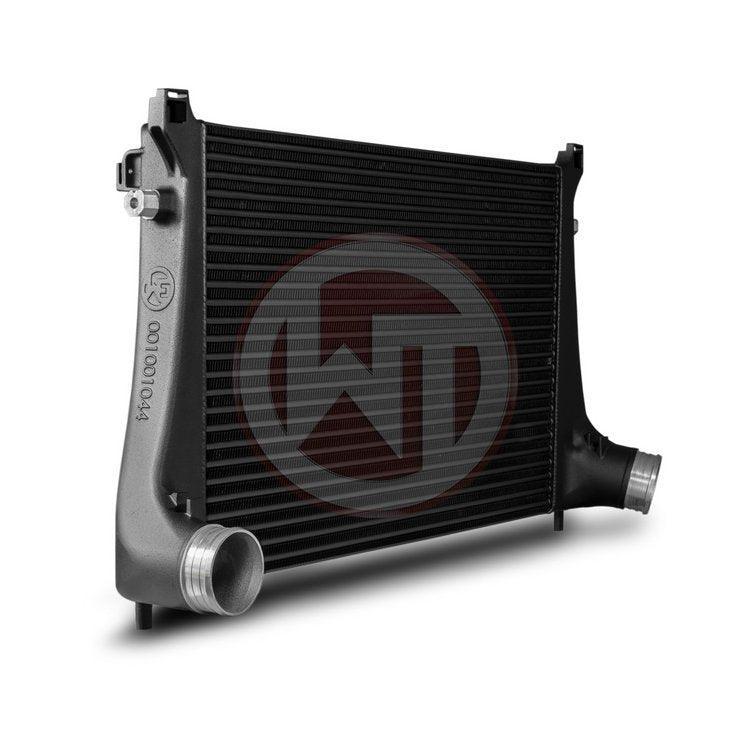

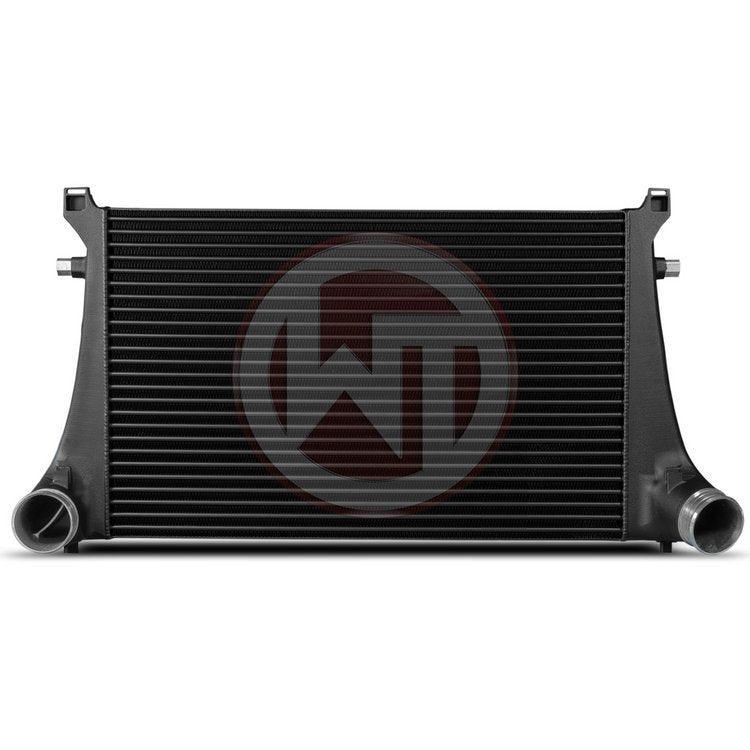

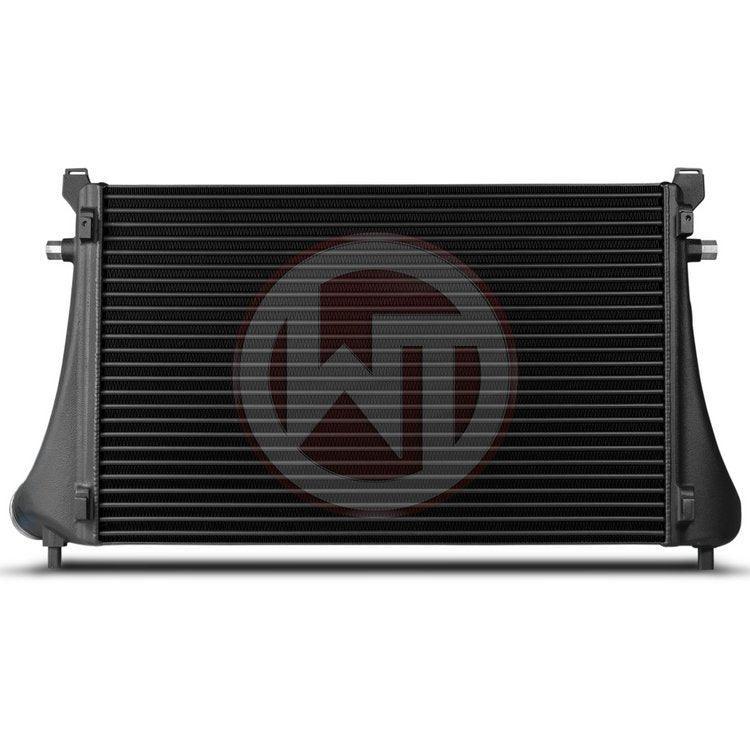

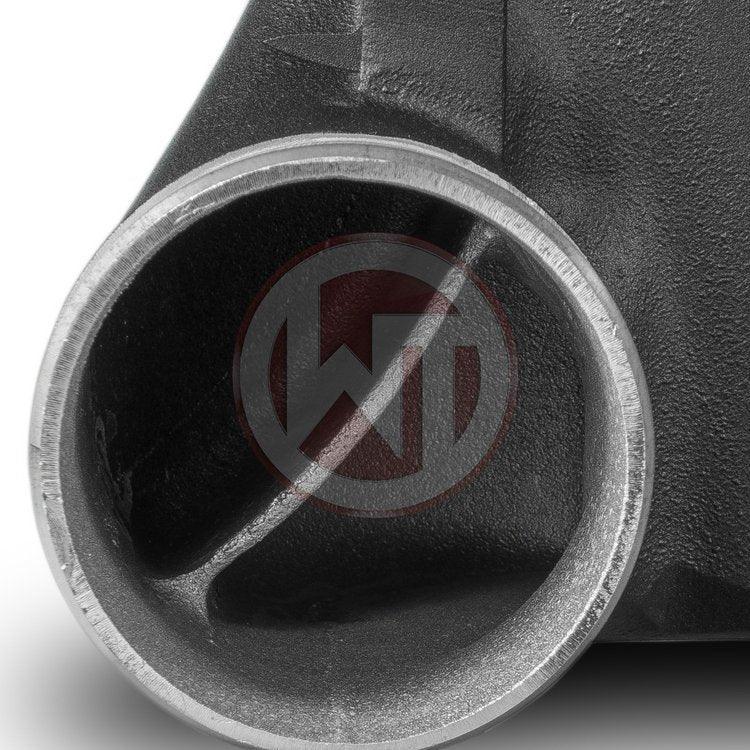

The Competition intercooler has the following core dimensions (640mm x 410mm x 65mm) and thus has an external intercooler volume of 17 liters (OEM 9 liters). The newly developed Competition high-performance core (Tube Fine) provides sufficient airflow to adjacent components, such as the water cooler, and is also very light. The intercooler thus has a total weight of only 8.9kg. The cast aluminum end tanks were created in CAD and optimized with the help of CFD simulations for the best possible internal airflow. An air duct integrated into the end tank enables homogeneous filling of the Competition high-performance core. The inlets and outlets of the intercooler have been enlarged to Ø 70mm, which is why this kit comes with reinforced silicone hoses.

Overall, this intercooler has significantly less back pressure than the series-installed intercooler. In addition, all our intercoolers have an anti-corrosion coating with heat-conducting properties. This guarantees permanent and optimal cooling with a significant increase in performance.

Installation is carried out by replacing the OEM intercooler and is easy to perform. All our products are subject to continuous quality monitoring.

The WAGNERTUNING Competition Intercooler Kit for the VAG 1.8TSI - 2.0TSI engine is suitable for the following vehicles:

• - VW Golf 7+7.5 GTI 2.0 TSI 162-228KW/220-310PS (incl. Facelift Performance and Clubsport[S and TCR models)
• - VW Golf 7+7.5 R 2.0 TSI 221-228KW/300-310PS (incl. Facelift models)
• - VW Arteon 2.0 TSI 140-206KW/190-280PS (only 7-speed DSG)
• - VW T-Roc 2.0TSI 4Motion 140KW/190PS (not included in the parts certificate)
• - VW T-Roc R 4Motion 221KW/300PS (not included in the parts certificate)
• - Skoda Superb 3V 2.0TSI 162KW/220PS
• - Skoda Superb 3V 2.0TSI 206KW/280PS

With further modifications (for more detailed information, please contact us) to the vehicle, also suitable for:

• - Audi Q2 40TFSI 140KW/190PS* (not included in the parts certificate)
• - Audi SQ2 221KW/300PS (not included in the parts certificate)
• - Audi A3 8V 1.8TSI 132KW/180PS*
• - Audi A3 8V 2.0TSI 140KW/190PS*
• - Audi S3 8V 2.0TSI 221-228KW/300-310PS*
• - Audi TT 8S 2.0TFSI 169KW / 230PS*
• - Audi TTS 8S 2.0TSI 228KW/310PS*
• - Seat Leon 5F Cupra 2.0TSI 195-272KW/265-370PS* (incl. Cupra ST 265-370 & Cupra R)
• - Skoda Octavia 5E 1.8TSI 132KW/180PS*
• - Skoda Octavia 5E RS 2.0TSI 162-180KW/220-245PS*

Due to the additional adjustments, the installation effort increases to a total of approx. 5-6 hours:

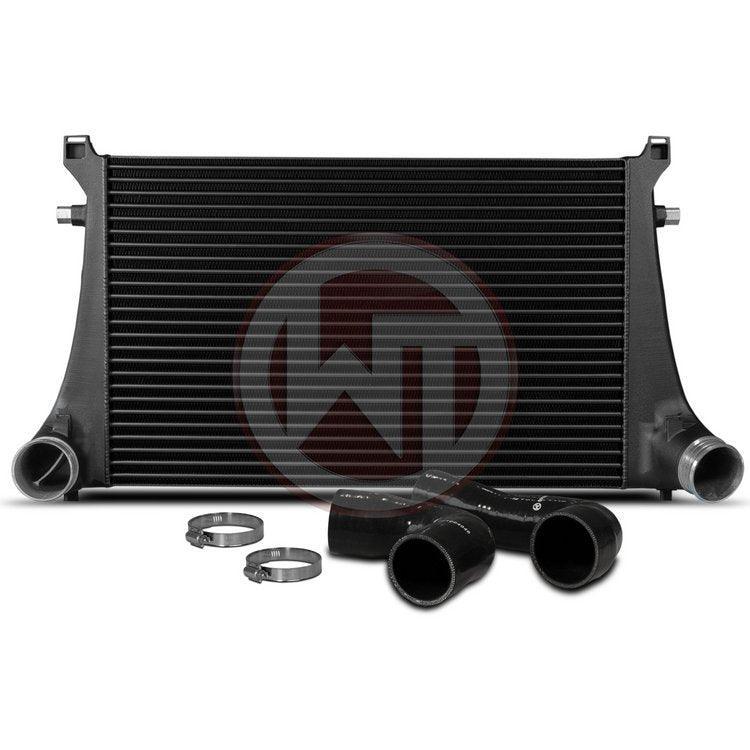

Scope of delivery:

1 intercooler

2 silicone hoses

2 hose clamps

1 mounting material

1 installation instructions

1 TÜV parts certificate (OPF models excluded)
